REMOVAL - Continued
2
1
HYEX01931

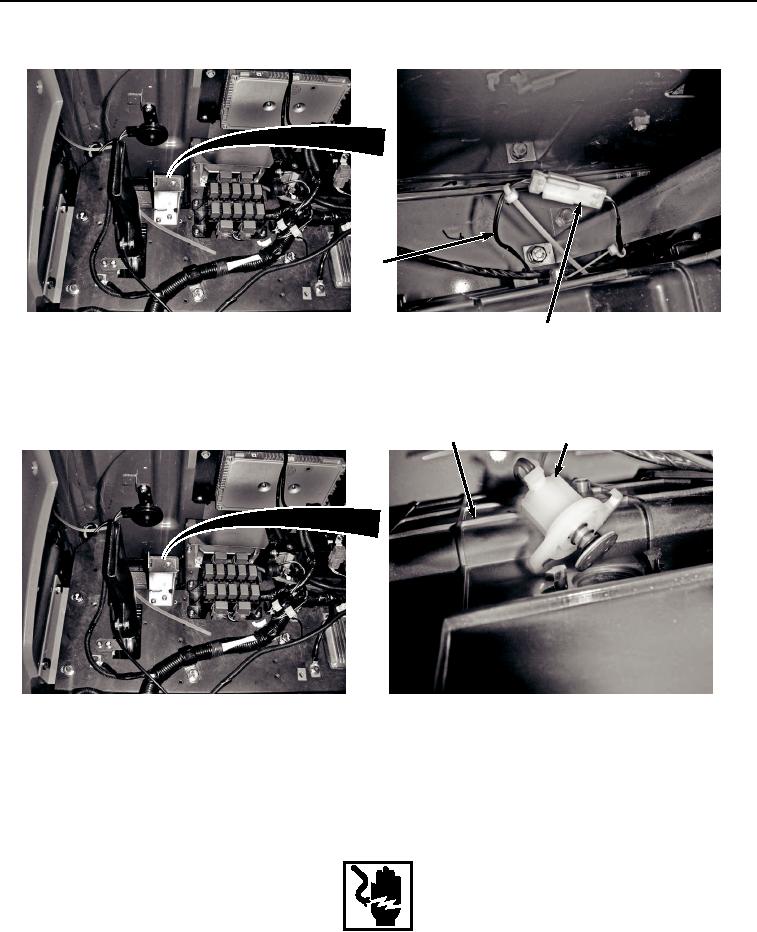

Figure 1.
Harness Removal.
2.
Remove heater core temperature sensor (Figure 2, Item 2) from air conditioner/heater unit (Figure 2, Item 3).
3
2
HYEX01932
Figure 2.
Heater Core Temperature Sensor Removal.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
