TM 5-3805-294-23-4
0571
LOWER DOOR WINDOWPANE INSTALLATION - Continued
8
3
8
9
7
HYEX02652

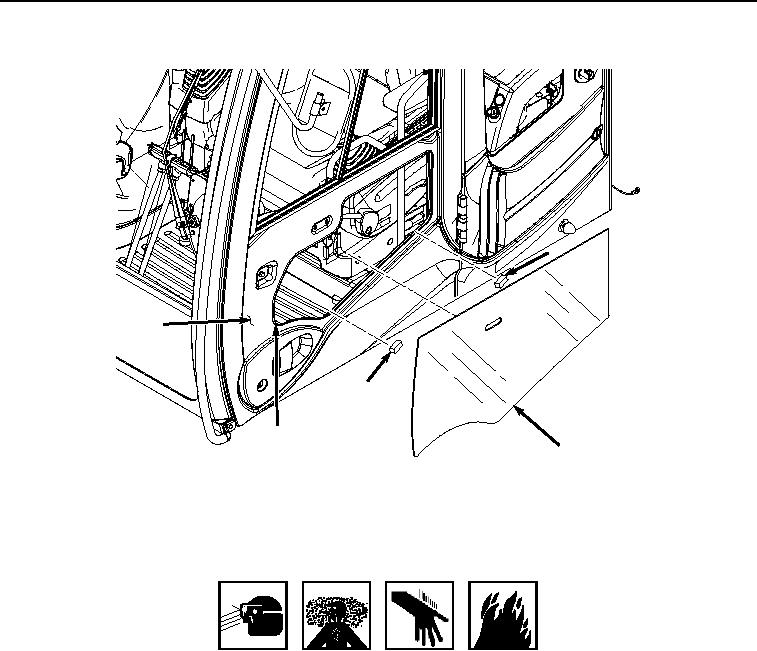

Figure 2.
Window Pane Installation.
4.
Remove two bushings (Figure 2, Item 8).
WARNING
ADHESIVES AND SEALANTS
NOTE
Ensure that edge of sealing compound is smooth and flat prior to adding sealing compound
and installing windowpane.
5.
Apply a continuous 1/4 in. (6 mm) bead (Figure 2, Item 9) of sealing compound over existing sealing compound.
6.
Position two bushings (Figure 2, Item 8) on door (Figure 2, Item 3).
7.
With the aid of an assistant, install windowpane (Figure 2, Item 7) to door (Figure 2, Item 3).
8.
Press firmly on windowpane (Figure 2, Item 7) until edge of windowpane is even with door (Figure 2, Item 3).
CAUTION
Do not operate machine for 24 hours after installing windowpane. Sealant must cure for 24
hours. Failure to comply may result in damage to equipment.
9.
Secure windowpane (Figure 2, Item 7) to door (Figure 2, Item 3) with duct tape.
