TM 5-3805-294-23-4
0571
LOWER DOOR WINDOWPANE INSTALLATION - Continued
5
6
4
2
1
HYEX02651
3

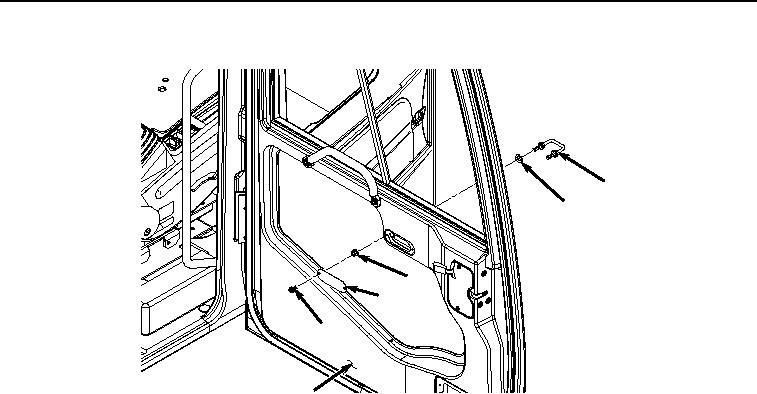

Figure 1. Cover Removal.
2.
Remove two nuts (Figure 1, Item 4), U-bolt (Figure 1, Item 5), and two washers (Figure 1, Item 6) from door
(Figure 1, Item 3).
NOTE
Note position of bushings when removing broken windowpane.
3.
Remove any remaining pieces of broken windowpane (Figure 2, Item 7) or debris from sealing compound. Do
not remove sealing compound.
