TM 5-3805-294-23-4
0570
INSTALLATION - Continued
3
14
18
16
HYEX01380
15
17

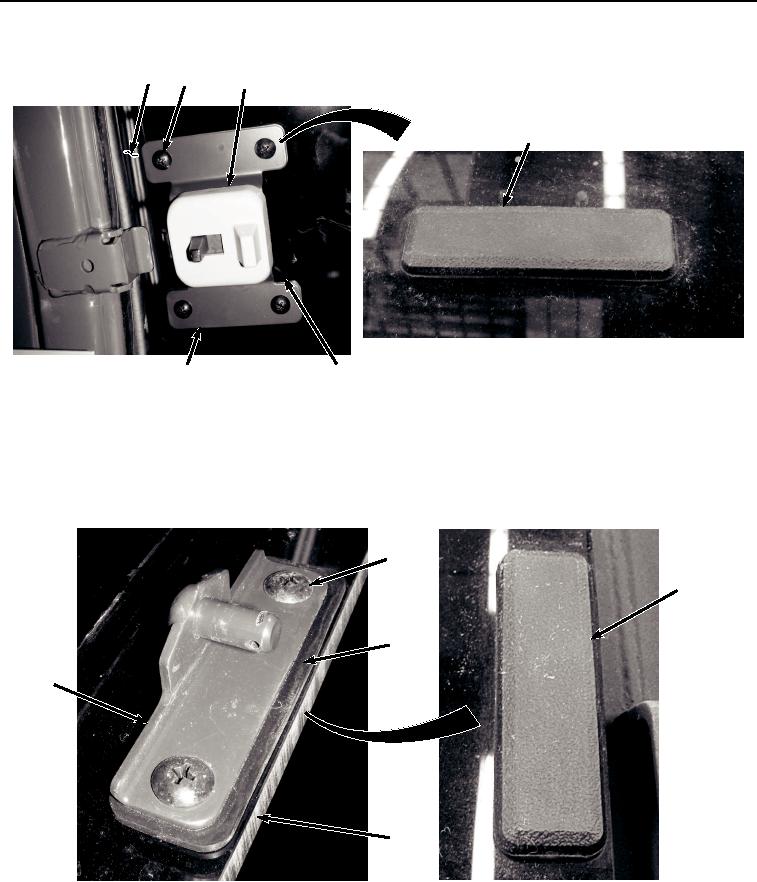

Figure 10.
Locks Installation.
4.
Install two locks (Figure 10, Item 15) and eight packings (Figure 10, Item 17) to skylight window (Figure 10,
Item 3) with eight screws (Figure 10, Item 14) and four retainers (Figure 10, Item 16).
5.
Install two brackets (Figure 11, Item 11) and four packings (Figure 11, Item 13) to skylight window (Figure 11,
Item 3) with four screws (Figure 11, Item 10) and two retainers (Figure 11, Item 12).
10
12
13
11
3
HYEX01377
Figure 11.
Cylinder Bracket Installation.
6.
Install two hinges (Figure 12, Item 6) and four packings (Figure 12, Item 9) to skylight window (Figure 12, Item
3) with four bolts (Figure 12, Item 7) and brackets (Figure 12, Item 8).
