CAB SKYLIGHT WINDOW REMOVAL - Continued
4.
Remove four bolts (Figure 2, Item 7) from hinges (Figure 2, Item 6) and skylight window (Figure 2, Item 3).
Discard bolts.
5.
Remove two hinges (Figure 3, Item 6), brackets (Figure 3, Item 8) and four packings (Figure 3, Item 9) from
skylight window (Figure 3, Item 3). Discard packings.
9
8
3
6

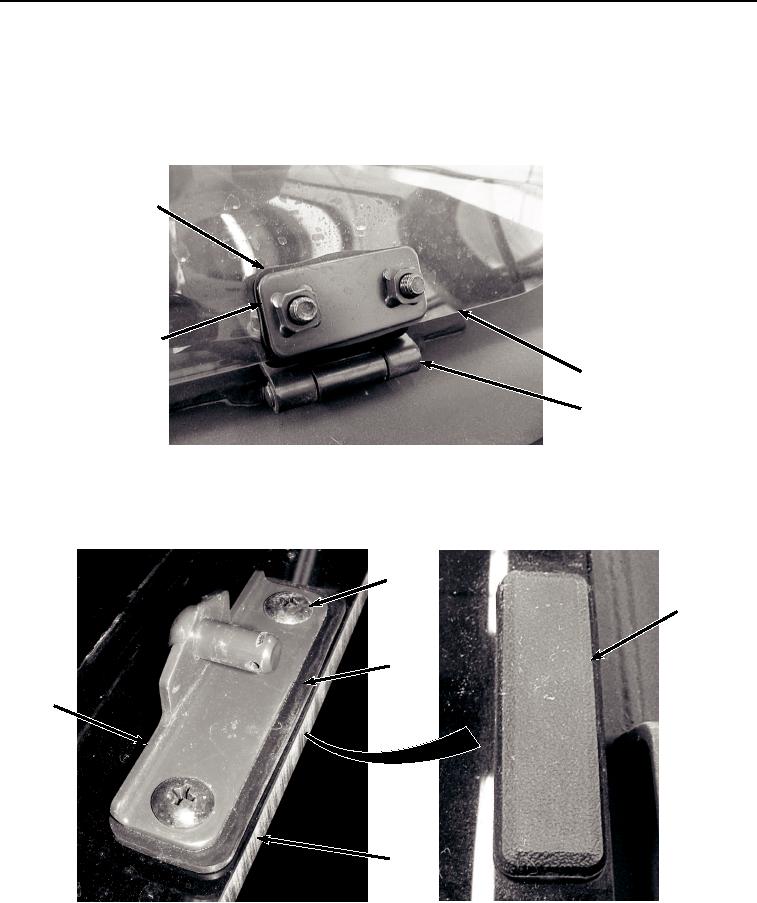

HYEX01375
Figure 3.
Hinge Removal.
6.
Remove four screws (Figure 4, Item 10), two brackets (Figure 4, Item 11), retainers (Figure 4, Item 12), and
four packings (Figure 4, Item 13) from skylight window (Figure 4, Item 3). Discard packings.
10
12
13
11
3
HYEX01377
Figure 4.
Cylinder Bracket Removal.
7.
Remove eight screws (Figure 5, Item 14), two locks (Figure 5, Item 15), four retainers (Figure 5, Item 16), and
eight packings (Figure 5, Item 17) from skylight window (Figure 5, Item 3). Discard packings.
