TM 5-3805-294-23-4
0570
SKYLIGHT SEAL INSTALLATION - Continued
24
4
HYEX01379

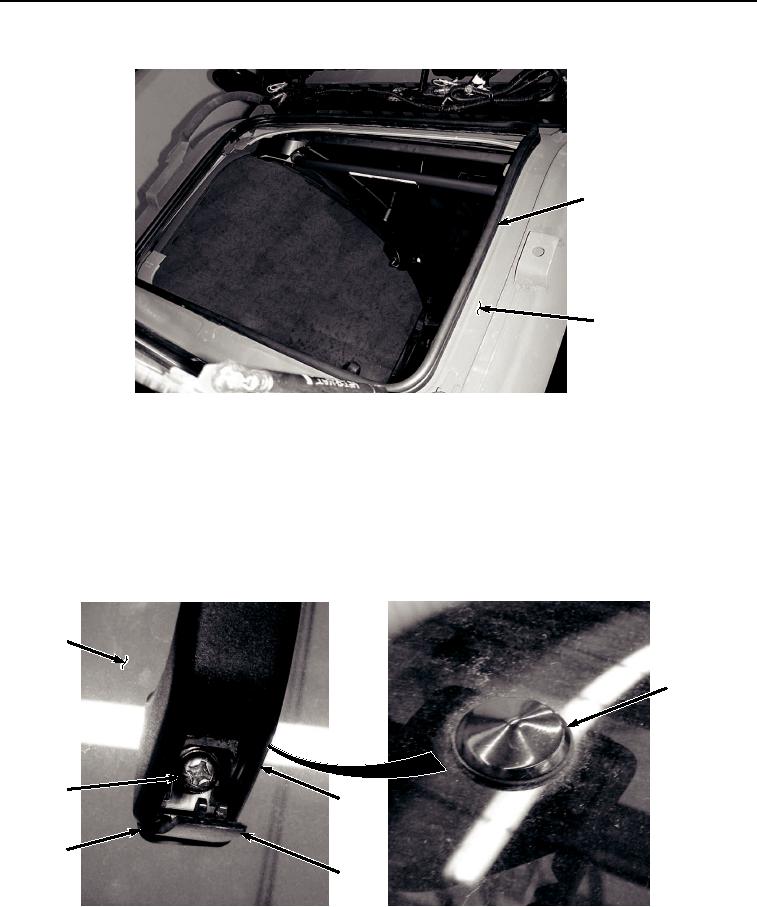

Figure 8.
Seal Installation.
2.
Install skylight seal (Figure 8, Item 24) to cab (Figure 8, Item 4).
END OF TASK
INSTALLATION
1.
Install handle (Figure 9, Item 20) and packings (Figure 9, Item 22) to skylight window (Figure 9, Item 3) with
two screws (Figure 9, Item 21) and retainers (Figure 9, Item 23).
3
23
21
20
22
19
HYEX01378
Figure 9.
Handle Installation.
2.
Install two covers (Figure 9, Item 19) to handle (Figure 9, Item 20).
3.
Install two covers (Figure 10, Item 18) to locks (Figure 10, Item 15).
