TM 5-3805-294-23-4
0570
INSTALLATION - Continued
5
7
6
4
3
9
8
3
6
HYEX01894

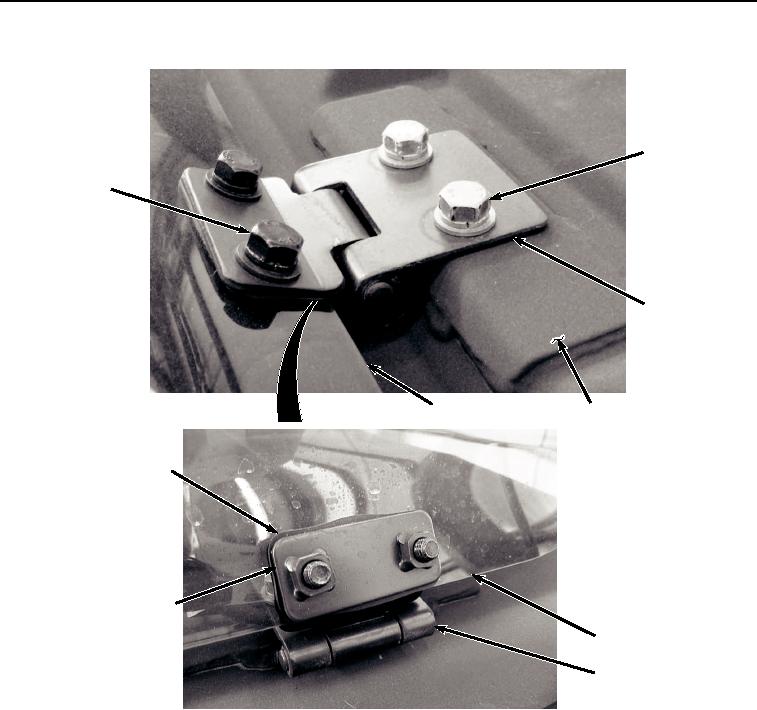

Figure 12.
Hinge Installation.
7.
Install skylight window (Figure 12, Item 3) to cab (Figure 12, Item 4).
8.
Install two hinges (Figure 12, Item 6) to cab (Figure 12, Item 4) with four bolts (Figure 12, Item 5).
9.
Install two cylinders (Figure 13, Item 2) to skylight window (Figure 13, Item 3) and cab (Figure 13, Item 4) with
four cotter pins (Figure 13, Item 1).
