CAB SKYLIGHT WINDOW REMOVAL - Continued
3
14
18
16
HYEX01380
15
17

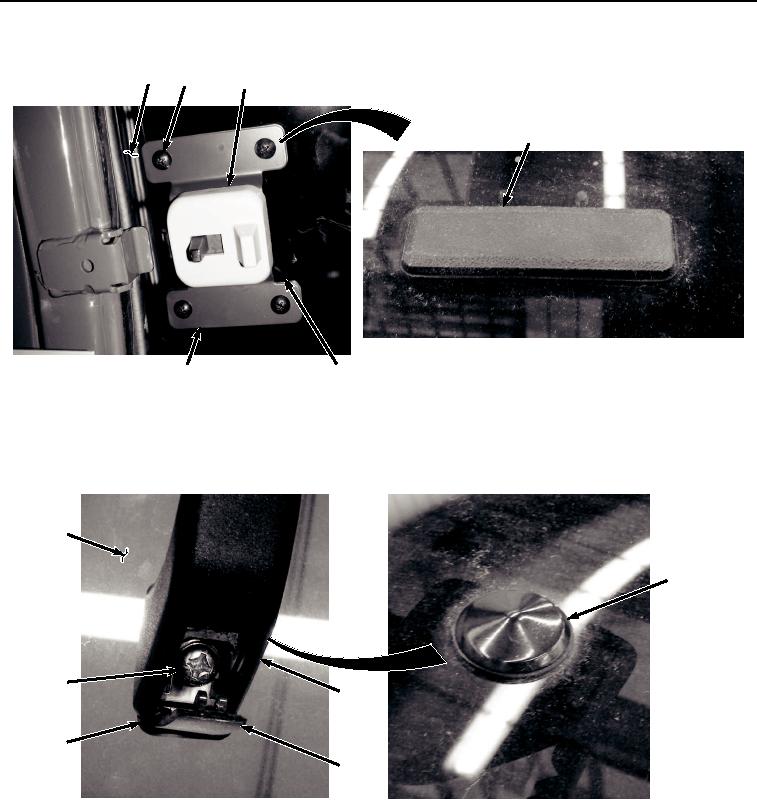

Figure 5.
Locks Removal.
8.
Remove two covers (Figure 5, Item 18) from locks (Figure 5, Item 15).
9.
Remove two covers (Figure 6, Item 19) from handle (Figure 6, Item 20).
3
23
21
20
22
19
HYEX01378
Figure 6.
Handle Removal.
10.
Remove two screws (Figure 6, Item 21), packings (Figure 6, Item 22), retainer (Figure 6, Item 23), and handle
(Figure 6, Item 20) from skylight window (Figure 6, Item 3). Discard screws and packings.
END OF TASK
SKYLIGHT WINDOW SEAL REMOVAL
1.
Remove seal (Figure 7, Item 24) from cab (Figure 7, Item 4).
