CAB SKYLIGHT WINDOW REMOVAL - Continued
1
3
2
1
4
HYEX01376

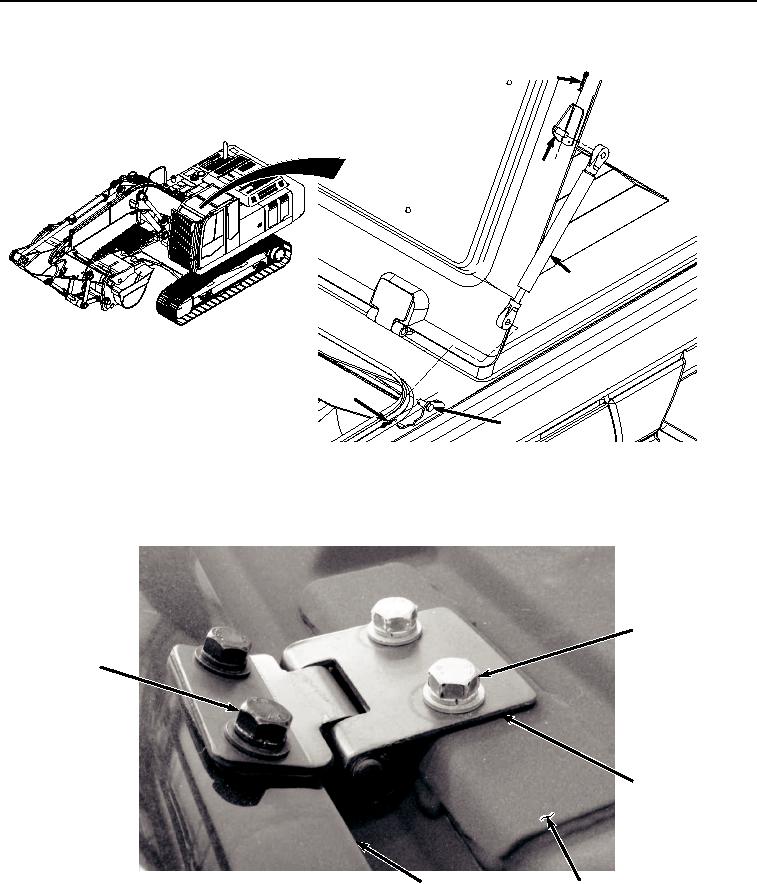

Figure 1.
Cylinder Removal.
2.
Remove four bolts (Figure 2, Item 5) from two hinges (Figure 2, Item 6) and cab (Figure 2, Item 4). Discard
bolts.
5
7
6
HYEX01374
4
3
Figure 2.
Window Removal.
3.
Remove skylight window (Figure 2, Item 3) from cab (Figure 2, Item 4).
