TM 5-3805-294-23-4
0569
INSTALLATION - Continued
5
7
6
2
1
3
10
9
4
8
HYEX01338

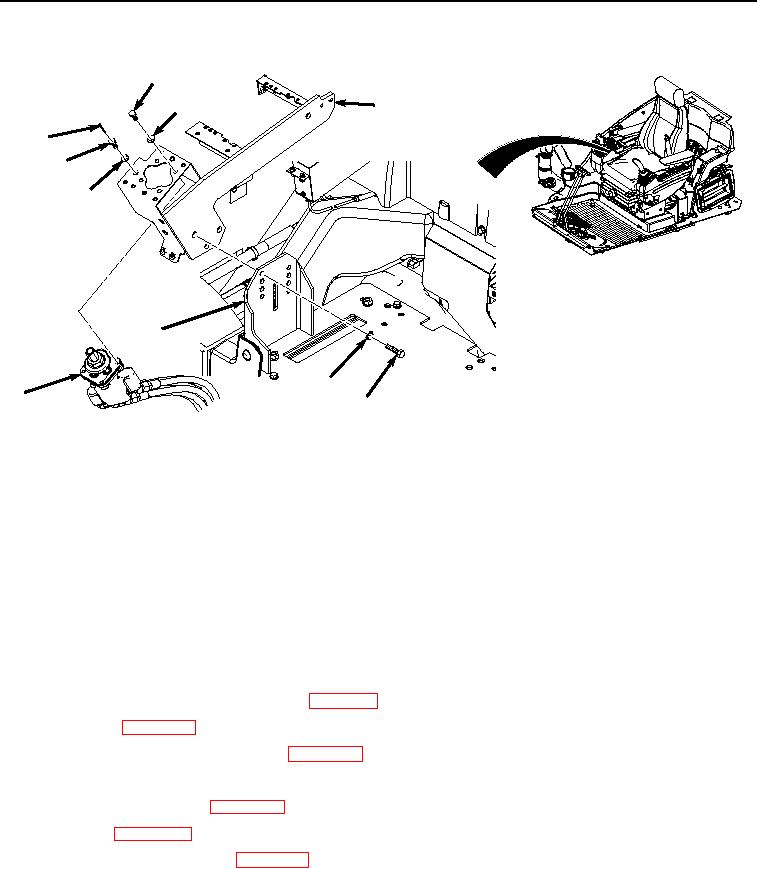

Figure 2. Right-Hand Console Installation.
2.
Install pilot control valve (Figure 2, Item 4) to console (Figure 2, Item 7) with three screws (Figure 2, Item 5)
and washers (Figure 2, Item 6).
NOTE
Install screw and spring pin as noted prior to removal.
3.
Install screw (Figure 2, Item 1), spring pin (Figure 2, Item 2), and washer (Figure 2, Item 3) to pilot control
valve.
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install air conditioner / heater controller. (WP 0546)
2.
Install radio. (WP 0616)
3.
Install cab right-hand console covers. (WP 0568)
4.
Install right-hand pilot control valve lever. (Volume 5, WP 0768)
5.
Install right-hand armrest. (WP 0553)
6.
Install seat. (WP 0580)
7.
Install negative battery cable. (WP 0521)
8.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
