SIDE COVERS INSTALLATION - Continued
25
17
26
18
20
19
31
24
23
30
22
21
10
29
28
27
HYEX00855

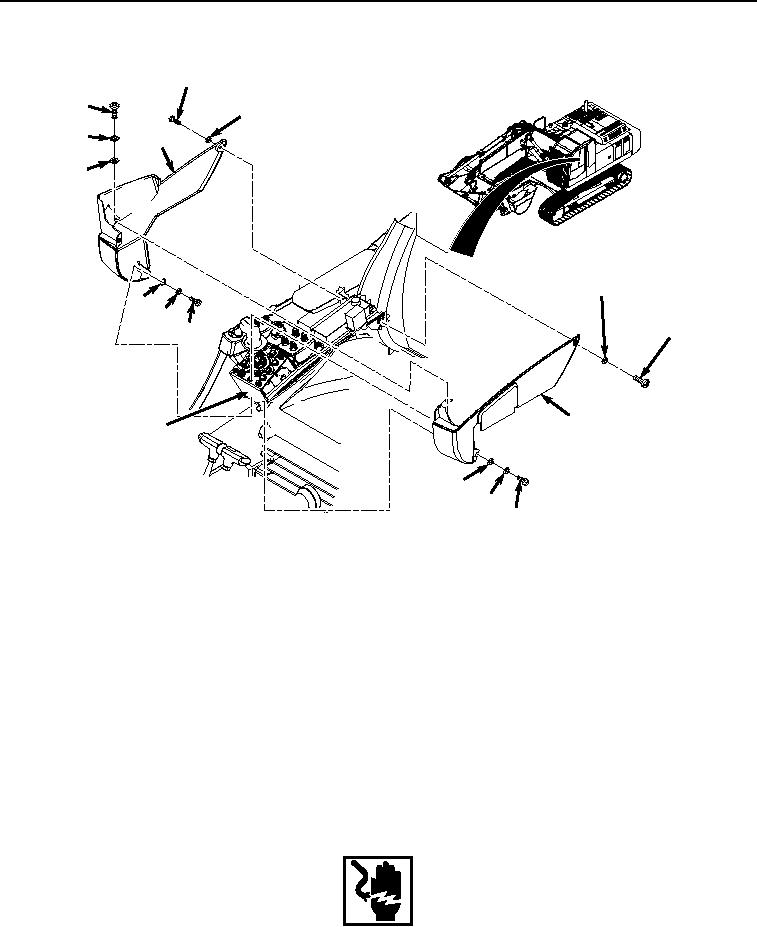

Figure 3.
Side Covers Installation.
2.
Install screw (Figure 3, Item 27), lockwasher (Figure 3, Item 28), and washer (Figure 3, Item 29) to cover (Figure
3, Item 21).
3.
Install cover (Figure 3, Item 20) to right-hand console (Figure 3, Item 10) with screw (Figure 3, Item 25) and
washer (Figure 3, Item 26).
4.
Install screw (Figure 3, Item 22), lockwasher (Figure 3, Item 23), and washer (Figure 3, Item 24) to cover (Figure
3, Item 20).
5.
Install screw (Figure 3, Item 17), lockwasher (Figure 3, Item 18), and washer (Figure 3, Item 19) to covers
(Figure 3, Item 20) and (Figure 3, Item 21).
END OF TASK
