TM 5-3805-294-23-4
0567
INSTALLATION - Continued
49.

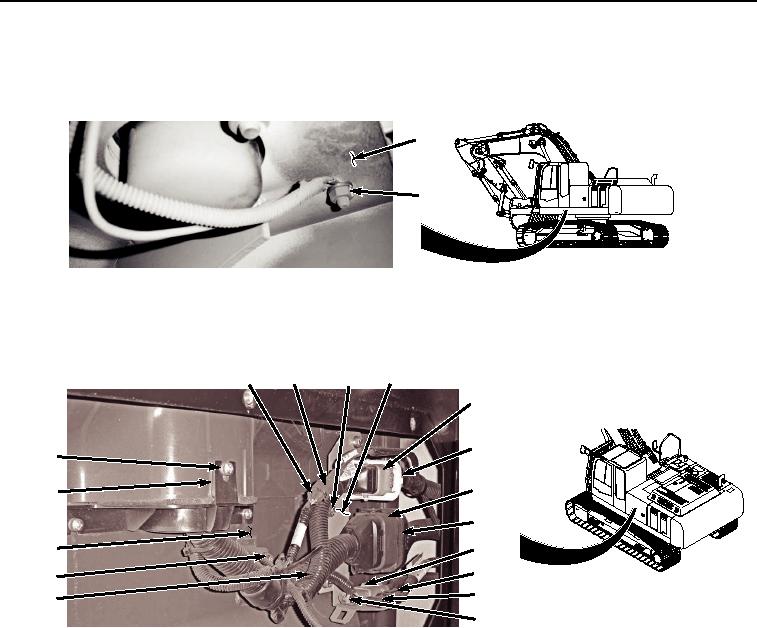

Install ground wire (Figure 37, Item 23) to machine frame (Figure 37, Item 24) with nut (Figure 37, Item 21)
and washer (Figure 37, Item 22).
24
21
22
23
HYEX02820
Figure 37. Ground Wire Installation.
50.
Connect auxiliary wiring harness SR/H connector (Figure 38, Item 19) to auxiliary wiring harness connector
(Figure 38, Item 20).
19
20
1, 2, 3 12
10
11
5, 6, 7
13
8
14
9
18
16
1, 2, 3
15
4
17
HYEX02819
Figure 38. Cab Wiring Harness Connect.
51.
Connect cab wiring harness W1 at connection X42 (Figure 38, Item 17) to machine wiring W2 connector (Figure
38, Item 18) and bracket (Figure 38, Item 12).
52.
Connect cab wiring harness W1 at connection X41 (Figure 38, Item 15) to machine wiring W2 connector (Figure
38, Item 16) and bracket (Figure 38, Item 12).
53.
Connect cab wiring harness W1 at connection X3 (Figure 38, Item 13) to machine wiring W2 connector (Figure
38, Item 14) and bracket (Figure 38, Item 12).
54.
Connect cab wiring harness W1 at connection X4 (Figure 38, Item 10) to machine wiring W2 connector (Figure
38, Item 11) and bracket (Figure 38, Item 12).
55.
Install cover (Figure 38, Item 8) to cab (Figure 38, Item 9) with three screws (Figure 38, Item 5), lockwashers
(Figure 38, Item 6), and washers (Figure 38, Item 7).
56.
Install wiring harness (Figure 38, Item 4) to cab (Figure 38, Item 9) with two clamps (Figure 38, Item 3), bolts
(Figure 38, Item 1), and washers (Figure 38, Item 2).
END OF TASK
