TM 5-3805-294-23-4
0568
UPPER COVERS REMOVAL - Continued
6
1
2
7
4
3
5
8
11
12
9
13
14
10
16
15
HYEX00854

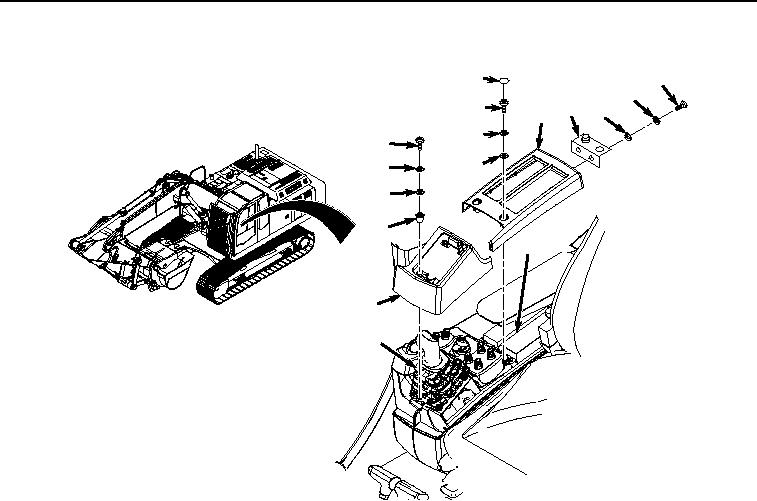

Figure 1.
Upper Covers Removal.
2.
Remove two caps (Figure 1, Item 6) from cover (Figure 1, Item 5).
3.
Remove two screws (Figure 1, Item 7), lockwashers (Figure 1, Item 8), and washers (Figure 1, Item 9) from
cover (Figure 1, Item 5). Discard lockwashers.
4.
Remove cover (Figure 1, Item 5) from right-hand console (Figure 1, Item 10).
5.
Remove four screws (Figure 1, Item 11), lockwashers (Figure 1, Item 12), washers (Figure 1, Item 13), and
spacers (Figure 1, Item 14) from boot (Figure 1, Item 15) and cover (Figure 1, Item 16). Discard lockwashers.
6.
Remove cover (Figure 1, Item 16) from right-hand console (Figure 1, Item 10).
END OF TASK
SIDE COVERS REMOVAL
1.
Remove screw (Figure 2, Item 17), lockwasher (Figure 2, Item 18), and washer (Figure 2, Item 19) from side
covers (Figure 2, Item 20 and 21). Discard lockwasher.
