TM 5-3805-294-23-4
0567
INSTALLATION - Continued
59
60
62
61
64
63
HYEX02829

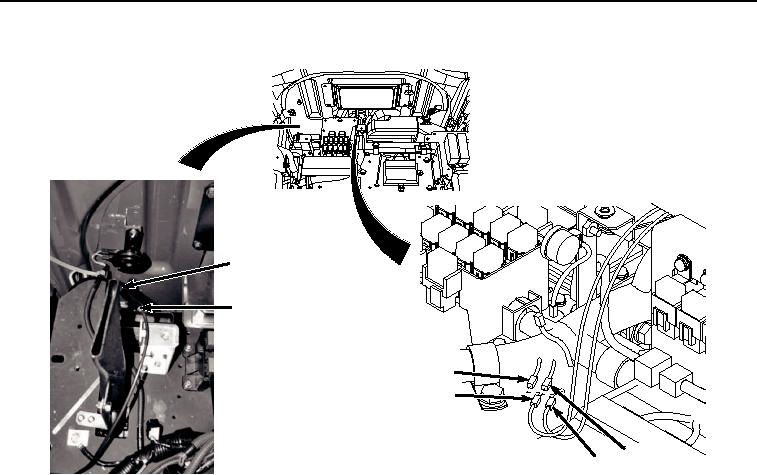

Figure 29.
Antenna and Speaker Wire Cable Connect.
32.
Connect right speaker wire connector (Figure 29, Item 61) to cab wire connector (Figure 29, Item 62).
33.
Connect antenna cable connector (Figure 29, Item 59) from radio cable connector (Figure 29, Item 60).
34.
Install alarm (Figure 30, Item 56) to cab (Figure 30, Item 9) with bolt (Figure 30, Item 57) and washer (Figure
30, Item 58).
0567-27
