TM 5-3805-294-23-4
0567
INSTALLATION - Continued
101, 102, 103
100
97, 98, 99
95
96
9
HYEX02834

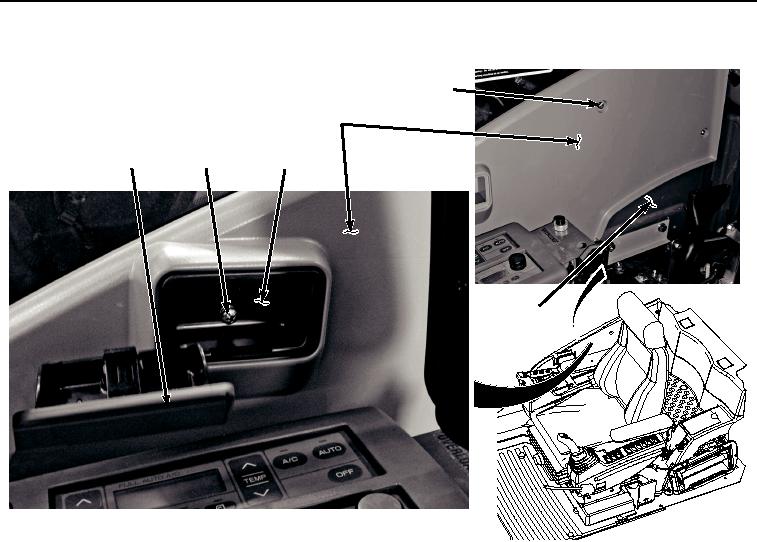

Figure 24. Ashtray and Cover Installation.
16.
Install ashtray housing (Figure 24, Item 96) to cover (Figure 24, Item 100) with screw (Figure 24, Item 97),
lockwasher (Figure 24, Item 98), and washer (Figure 24, Item 99).
17.
Install ashtray (Figure 24, Item 95) to ashtray housing (Figure 24, Item 96).
18.
Move console (Figure 25, Item 89) into position in cab (Figure 25, Item 9).
