REMOVAL - Continued
126
125
9
127
124
HYEX02838

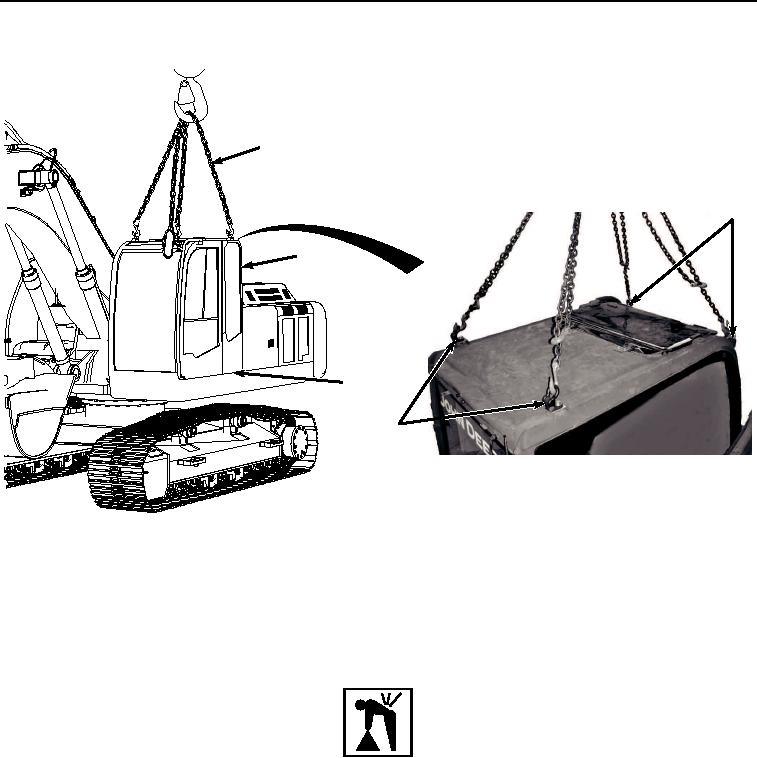

Figure 19. Cab Removal.
52.
Install two lift eyes (Figure 19, Item 125) to upper front mounts of cab (Figure 19, Item 9) with hardware from
front cab lights.
53.
Install suitable lifting device (Figure 19, Item 126) to two lifting eyes (Figure 19, Item 124) and two lifting eyes
(Figure 19, Item 125).
WARNING
Cab weighs approximately 1045 lb (474 kg). Do not attempt to move or lift without the aid of
assistant and suitable lifting device. Failure to comply may result in injury or death to
personnel.
54.
With the aid of assistant, guide rope, and suitable lifting device (Figure 19, Item 126), remove cab (Figure 19,
Item 9) from machine (Figure 19, Item 127).
END OF TASK
