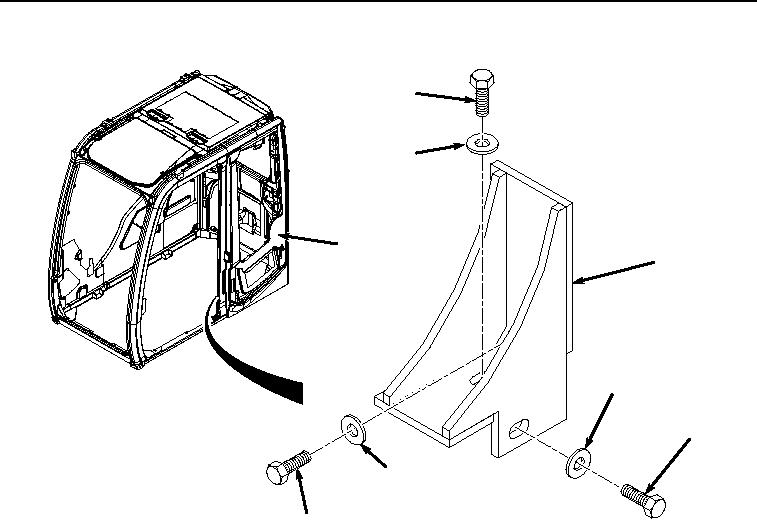

Figure 17. Cab Mount Removal.

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
567

TM 5-3805-294-23-4

0567

REMOVAL - Continued

107

108

109

108

107

108

107

HYEX02836

Figure 17.

Cab Mount Removal.

45.

Remove bolt (Figure 18, Item 110) and washer (Figure 18, Item 111) from cab (Figure 18, Item 9).

0567-15
