TM 5-3805-294-23-4
0567
INSTALLATION
WARNING
Cab weighs approximately 1045 lb (474 kg). Do not attempt to move or lift without the aid of
assistant and suitable lifting device. Failure to comply may result in injury or death to
personnel.
NOTE
Do not tighten cab mounting hardware until all hardware is in place.
1.

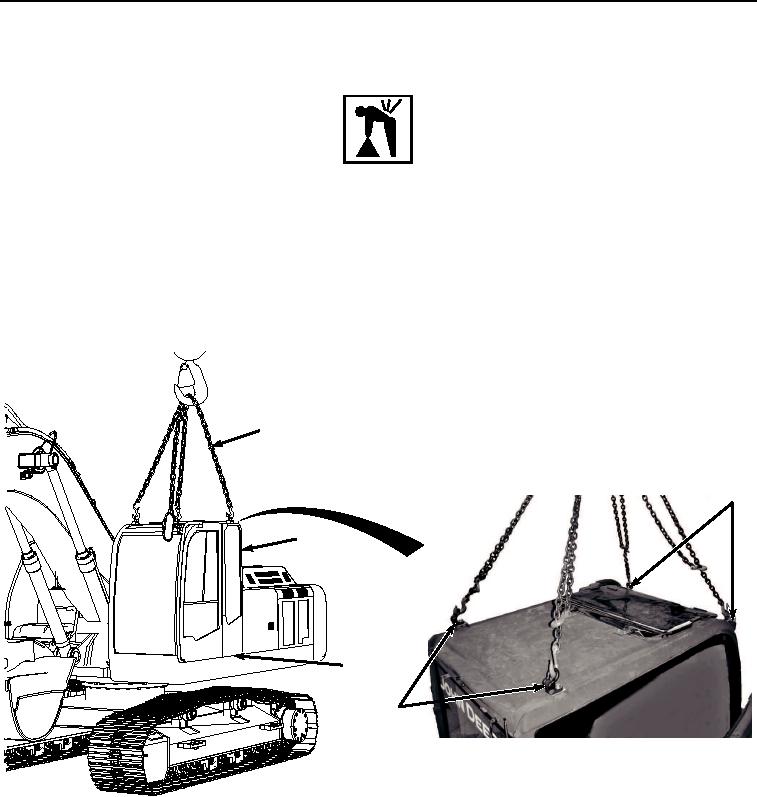

With the aid of assistant and suitable lifting device (Figure 20, Item 126), install cab (Figure 20, Item 9) to
machine (Figure 20, Item 127).
126
125
9
127
124
HYEX02838
Figure 20.
Cab Installation.
2.
Remove suitable lifting device (Figure 20, Item 126) from two lifting eyes (Figure 20, Item 124) and two lifting
eyes (Figure 20, Item 125)
3.
Remove two lifting eyes (Figure 20, Item 124) from upper rear mounts of cab (Figure 20, Item 9).
4.
Remove two lifting eyes (Figure 20, Item 125) from upper front mounts of cab (Figure 20, Item 9).
5.
Install four locknuts (Figure 21, Item 121) and washers (Figure 21, Item 122) to cab isolators (Figure 21, Item
123).
