TM 5-3805-294-23-4
0567
INSTALLATION - Continued
106
104, 105
9
HYEX02835

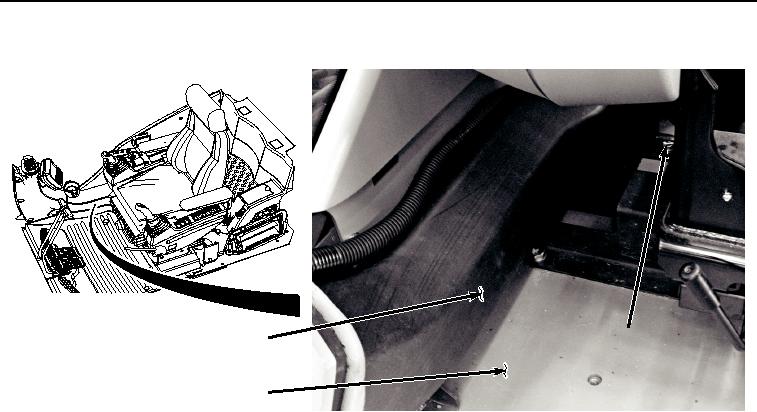

Figure 23.
Cab Mount Installation.
15.
Install cover (Figure 24, Item 100) to cab (Figure 24, Item 9) with six screws (Figure 24, Item 101), lockwashers
(Figure 24, Item 102), and washers (Figure 24, Item 103).
0567-21
