TM 5-3805-294-23-4
0567
INSTALLATION - Continued
55
54
57, 58
56
9
HYEX02828

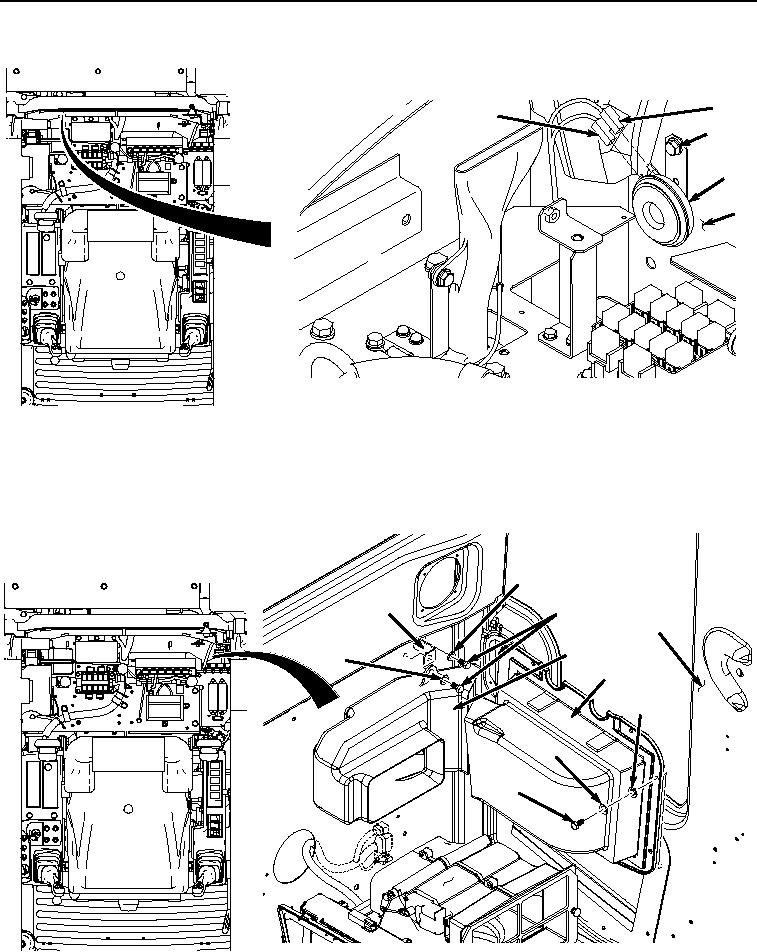

Figure 30. Alarm Installation.
35.
Install connector (Figure 30, Item 54) and connector (Figure 30, Item 55) to alarm (Figure 30, Item 56).
36.
Install bracket (Figure 31, Item 52) and air duct (Figure 31, Item 53) to cab (Figure 31, Item 9) with two bolts
(Figure 31, Item 50) and washers (Figure 31, Item 51).
51
52
50
9
53
51
49
48
47
46
HYEX02827
Figure 31. Fresh Air Duct Installation.
