TM 5-3805-294-23-4
0572
REMOVAL - Continued
NOTE
Relay block is hard wired to the cab wiring harness.
14.
Remove four screws (Figure 7, Item 23), lockwashers (Figure 7, Item 24), washers (Figure 7, Item 25), and
relay block (Figure 7, Item 26) from bracket (Figure 7, Item 20). Discard lockwashers.
28
27
26
20
23
24
25
HYEX02597

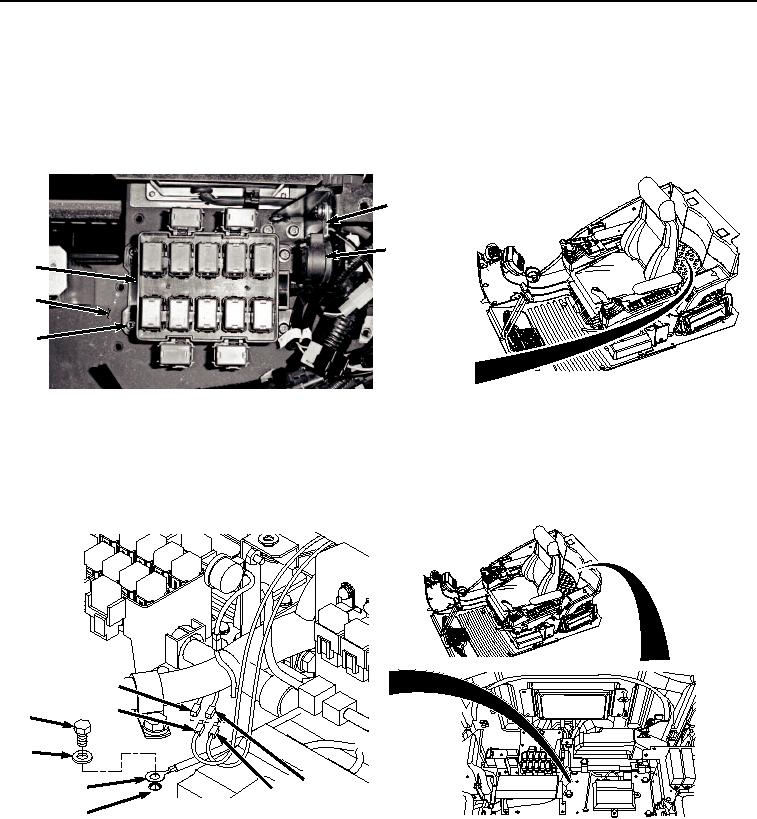

Figure 7. Relay Block Removal.
15.
Remove monitor warning alarm (Figure 7, Item 27) from bracket (Figure 7, Item 28).
16.
Remove bolt (Figure 8, Item 29), washer (Figure 8, Item 30), and cab wiring harness W1 ground terminal W37
(Figure 8, Item 31) from bracket (Figure 8, Item 20).
32
33
29
30
34
31
35
20
HYEX02598
Figure 8.
Ground Terminal Removal.
17.
Disconnect cab wiring harness W1 at connection B25 (Figure 8, Item 32) from right speaker wiring (Figure 8,
Item 33).
18.
Disconnect cab wiring harness W1 at connection B26 (Figure 8, Item 34) from left speaker wiring (Figure 8,
Item 35).
