TM 5-3805-294-23-4
0572
REMOVAL - Continued
9.
Disconnect cab wiring harness W1 at connection X38 (Figure 4, Item 13) from right-hand console wiring
harness W11 (Figure 4, Item 14).
10.
Disconnect cab wiring harness W1 at connection X39 (Figure 4, Item 15) from right-hand console wiring
harness W11 (Figure 4, Item 14).
11.
Disconnect cab wiring harness W1 at connection X47 (Figure 4, Item 16) from right-hand console wiring
harness W11 (Figure 4, Item 14).
NOTE
For Steps 12 and 13 use Figure 5 if HYEX has standard cab and Figure 6 if armored cab is
installed.
12.
Remove bolt (Figure 5, Item 17), washer (Figure 5, Item 18), and cab wiring harness W1 ground terminal W36
(Figure 5, Item 19) from bracket (Figure 5, Item 20).
20
21
21
22
17
18
19
HYEX02596

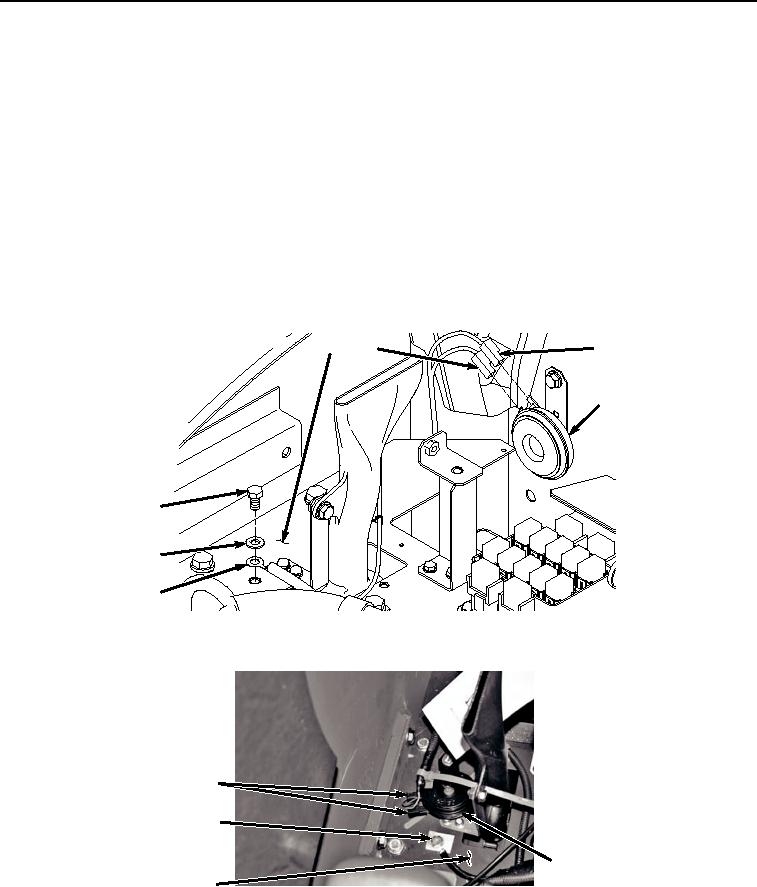

Figure 5. Security Alarm Disconnect.
21
17, 18, 19
22
20
HYEX03301
Figure 6. Security Alarm Disconnect with Armored Cab.
13.
Disconnect cab wiring harness W1 at two connections H2 (Figure 6, Item 21) from security alarm (Figure 6,
Item 22).
