WINDSHIELD DISASSEMBLY - Continued
3
25
24
26
23
22
HYEX02779

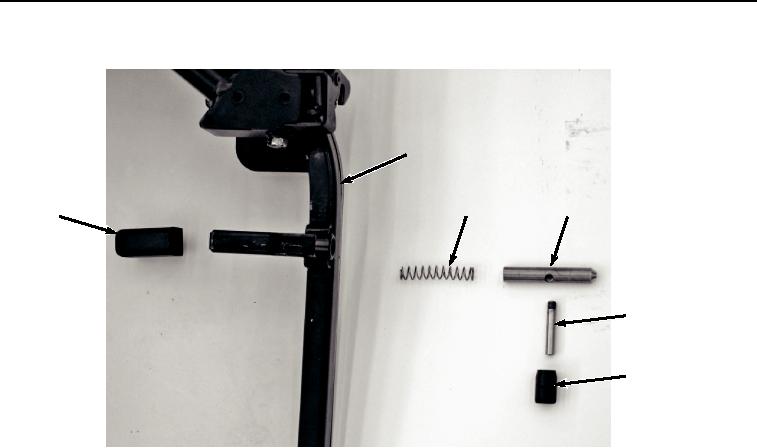

Figure 6. Windshield Locking Mechanism Removal.
6.
Remove lever (Figure 6, Item 23) from shaft (Figure 6, Item 24).
7.
Remove shaft (Figure 6, Item 24) and spring (Figure 6, Item 25) from windshield assembly (Figure 6, Item 3).
8.
Remove cover (Figure 6, Item 26) from windshield assembly (Figure 6, Item 3).
9.
Pry open two covers (Figure 7, Item 27) on handle (Figure 7, Item 28).
