INSTALLATION - Continued
1
2
3
4
5
7
6
HYEX00877

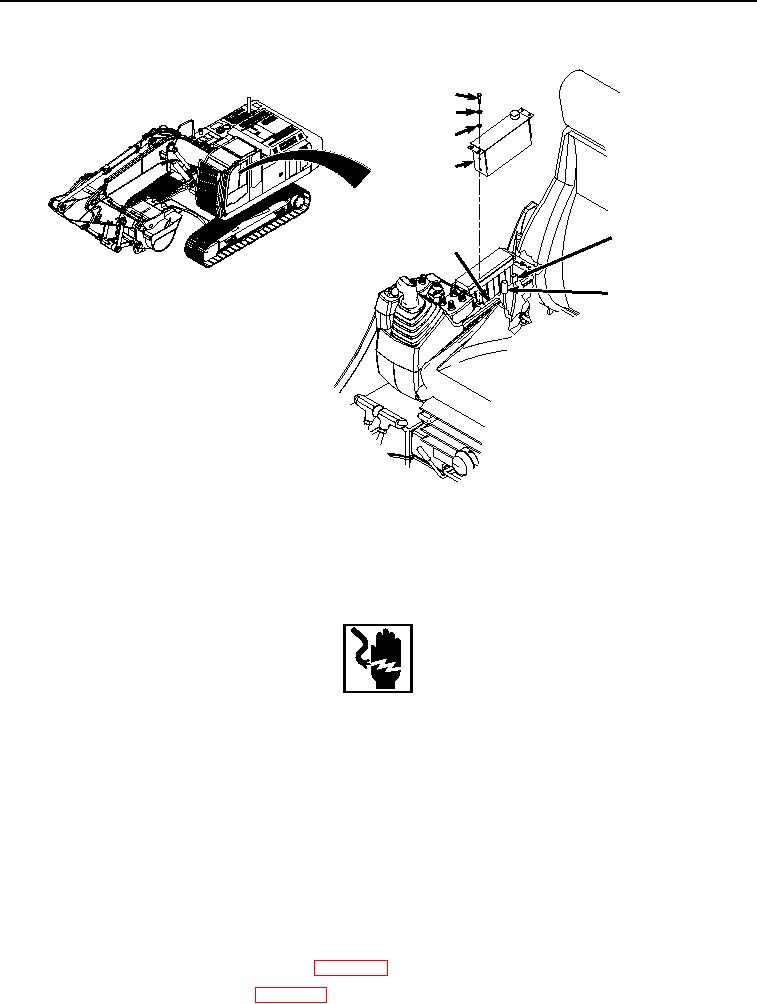

Figure 2. Radio Installation.
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
2.
Connect connector (Figure 2, Item 6) to radio (Figure 2, Item 4).
3.
Connect connector (Figure 2, Item 5) to radio (Figure 2, Item 4).
4.
Install four screws (Figure 2, Item 1), lockwashers (Figure 2, Item 2), and washers (Figure 2, Item 3) to radio
(Figure 2, Item 4).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install cab top right-hand console covers. (WP 0568)
2.
Connect negative battery cable. (WP 0521)
