TM 5-3805-294-23-4
0615
INSTALLATION - Continued
9
8
11
10
HYEX02188

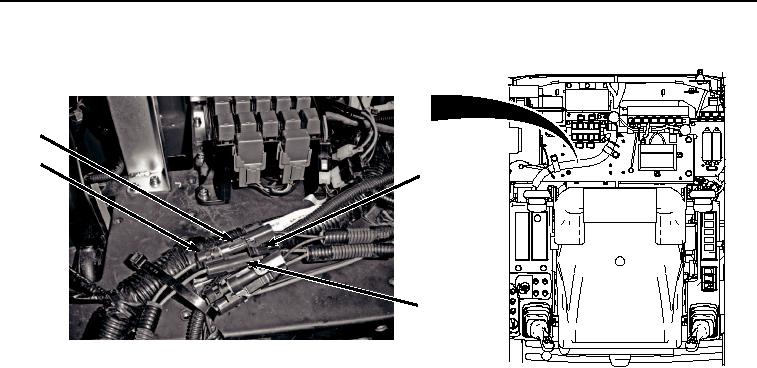

Figure 11.
Wiring Harness To Auxiliary Fuse Box Wiring Harness W13 Installation.
7.
Connect wiring harnesses red wire (Figure 11, Item 8) to auxiliary fuse box wiring harness W13 black wire
connector AUX 3/X63 (Figure 11, Item 9).
8.
Install black wire terminal (Figure 12, Item 7) to alarm (Figure 12, Item 4) with washer (Figure 12, Item 6) and
screw (Figure 12, Item 5).
