REMOVAL - Continued
17
15
14
16
HYEX02192

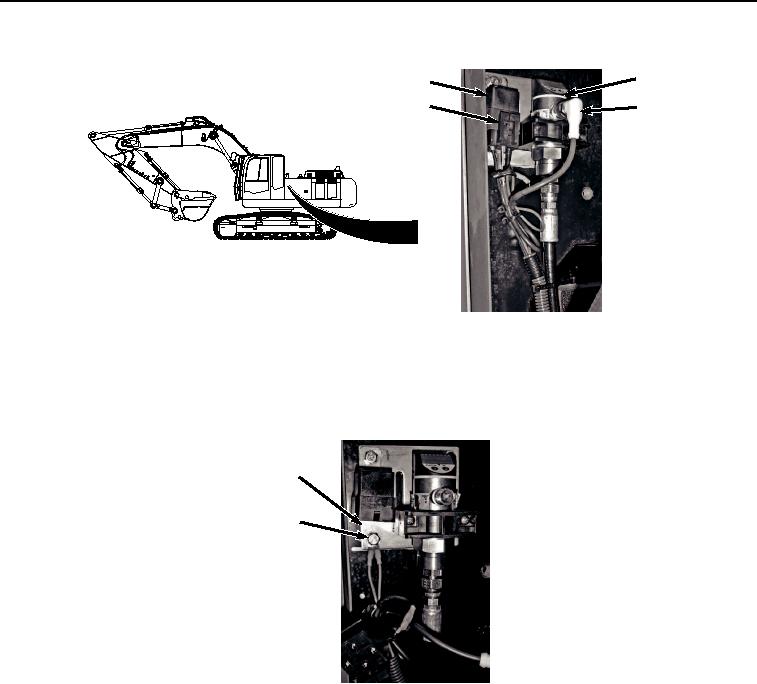

Figure 4. Wiring Harness From Relay and Pressure Switch Removal.
8.
Disconnect wiring harness connector (Figure 4, Item 16) from pressure switch (Figure 4, Item 17).
9.
Remove bolt (Figure 5, Item 18), two ground wire terminals (Figure 5, Item 19) and (Figure 5, Item 20), and
locknut (Figure 5, Item 21) from storage compartment cover (Figure 5, Item 22). Discard locknut.
22
18, 19, 20, 21
HYEX02193
Figure 5.
Ground From Storage Compartment Cover Removal.
10.
Remove wiring harness (Figure 6, Item 23) by pulling twine along route out of cab (Figure 6, Item 24) from
machine (Figure 6, Item 25).
