TM 5-3805-294-23-4
0615
REMOVAL - Continued
1.
Remove screw (Figure 1, Item 1), washer (Figure 1, Item 2), and red wire terminal (Figure 1, Item 3) from alarm
(Figure 1, Item 4).
1, 2, 3
4
5, 6, 7
HYEX02187

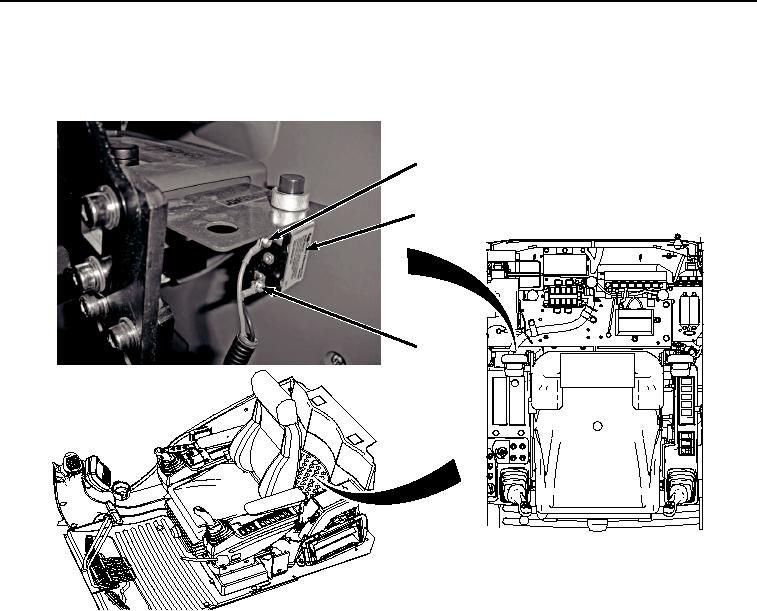

Figure 1. Wiring Harness From Alarm Removal.
2.
Remove screw (Figure 1, Item 5), washer (Figure 1, Item 6), and black wire terminal (Figure 1, Item 7) from
alarm (Figure 1, Item 4).
3.
Disconnect wiring harness red wire (Figure 2, Item 8) from auxiliary fuse box wiring harness W13 black wire
connector AUX 3/X63 (Figure 2, Item 9).
