TM 5-3805-294-23-4
0629
INSTALLATION - Continued
3
35, 36
33, 34
30
29
31
32
HYEX02272

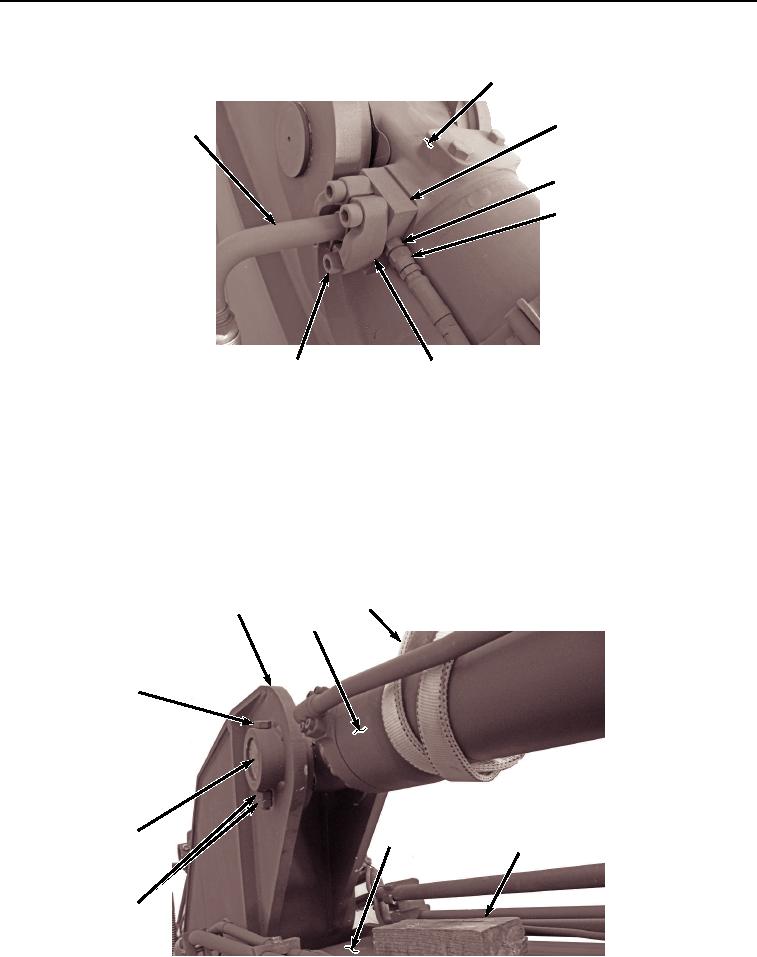

Figure 48. Left Bucket Cylinder Hose Installation.
36.
Install O-ring (36) to plate (35).
37.
Install O-ring (34) to hose (33).
38.
Install plate (35) with O-ring (36) and hose (33) with O-ring (34) to bucket cylinder (3) with four screws (31)
and two clamps (32).
39.
Install hose (29) to fitting (30).
40.
Install suitable lifting device (25) to arm cylinder (21).
25
14
21
23
24, 28
27
26
22
HYEX02473
Figure 49. Arm Cylinder Pin Installation.
