TM 5-3805-294-23-4
0629
INSTALLATION - Continued
25.
With the aid of an assistant and suitable lifting device (25), install bucket cylinder (3) and two shims (45) to
arm (14) with bucket cylinder pin (44).
26.
Install bolt (43) and two nuts (42) to arm (14) and bucket cylinder pin (44).
44
43
14
42
HYEX02276

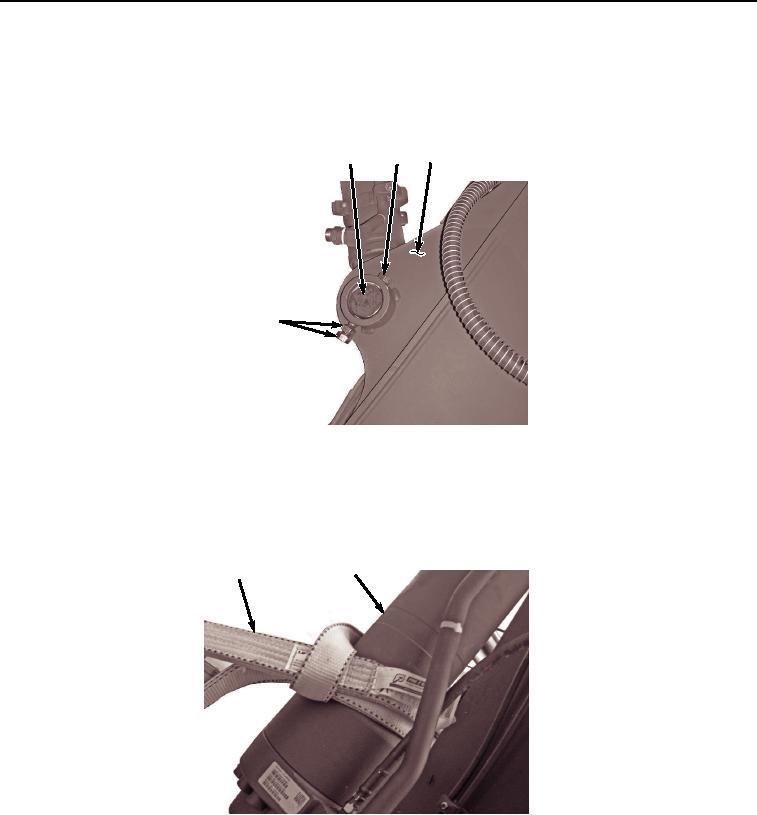

Figure 42.
Bucket Cylinder Bolt Installation.
27.
Tighten two nuts (42) against each other allowing bolt (43) to spin freely.
28.
With the aid of an assistant and suitable lifting device (25), lower bucket cylinder (3).
3
25
HYEX02275
Figure 43.
Lowering Bucket Cylinder.
29.
Position wood block (21) between bucket cylinder (3) and arm (14).
