INSTALLATION - Continued
41
40
HYEX02274
Figure 46.
Lower Hose Installation.
WARNING
33.
Lightly lubricate O-ring (38) with clean oil.
39
37, 38
HYEX02273

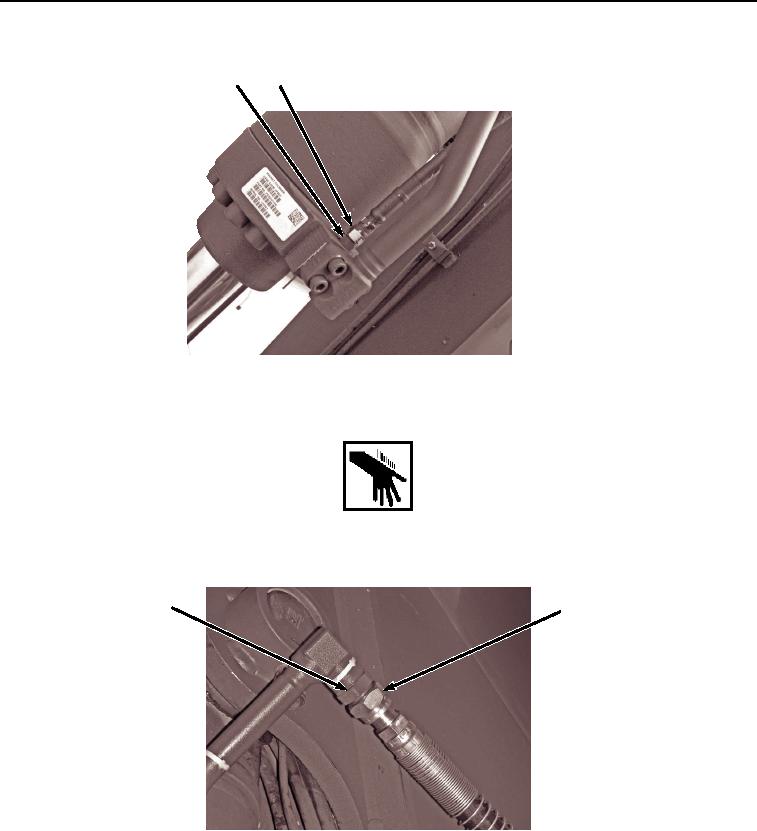

Figure 47. Left Bucket Cylinder Hose Installation.
34.
Install hose (37) and O-ring (38) to fitting (39).
35.
Lightly lubricate O-rings (34) and (36) with clean oil.
