INSTALLATION - Continued
3
2
14
10, 13
7, 11
12
HYEX02268

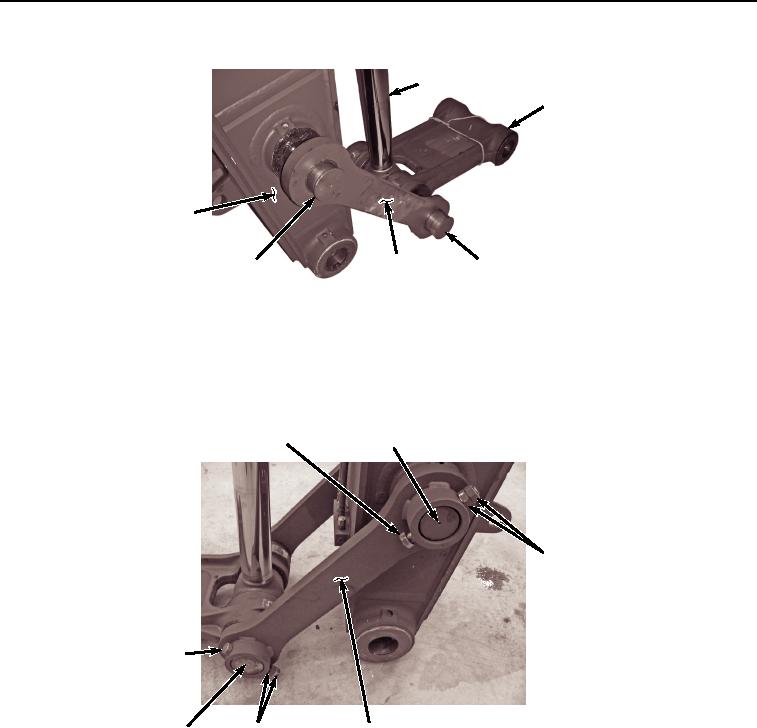

Figure 51. Arm Link Pins Installation.
56.
Install pin (7) and two shims (11) to arm link (12), bucket link (2), and bucket cylinder (3).
57.
Install arm link (6) to pin (10) and pin (7).
9
10
8
5
HYEX02267
7
4
6
Figure 52.
Arm Link Installation.
58.
Install bolt (9) and two nuts (8) to arm link (6) and pin (10).
59.
Tighten two nuts (8) against each other allowing bolt (9) to spin freely.
60.
Install bolt (5) and two nuts (4) to arm link (6) and pin (7).
61.
Tighten two nuts (4) against each other allowing bolt (5) to spin freely.
62.
Install three retainers (20) to arm (14).
