REMOVAL - Continued
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Position drain pan under hoses being removed.
Tag and mark hoses and fittings prior to removal to ensure proper installation.
1.
Remove hose (Figure 1, Item 1) from fitting (Figure 1, Item 2).
7
5
8
6
4
2
1
HYEX00936
3

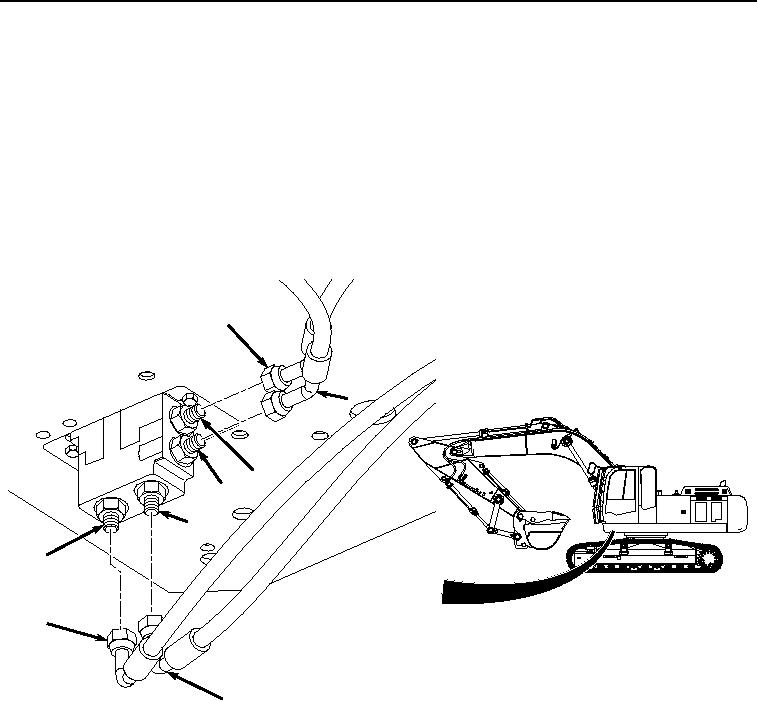

Figure 1.
Hydraulic Hose Removal.
2.
Remove hose (Figure 1, Item 3) from fitting (Figure 1, Item 4).
3.
Remove hose (Figure 1, Item 5) from fitting (Figure 1, Item 6).
4.
Remove hose (Figure 1, Item 7) from fitting (Figure 1, Item 8).
5.
Remove three bolts (Figure 2, Item 9), washers (Figure 2, Item 10), and attachment pedal and pilot control
valve assembly (Figure 2, Item 11) from cab floor (Figure 2, Item 12).
