TM 5-3805-294-23-4
0631
INSTALLATION - Continued
5
4
1
6
3
3
2
1
6
8
3
7
9
5
1
10
HYEX03249

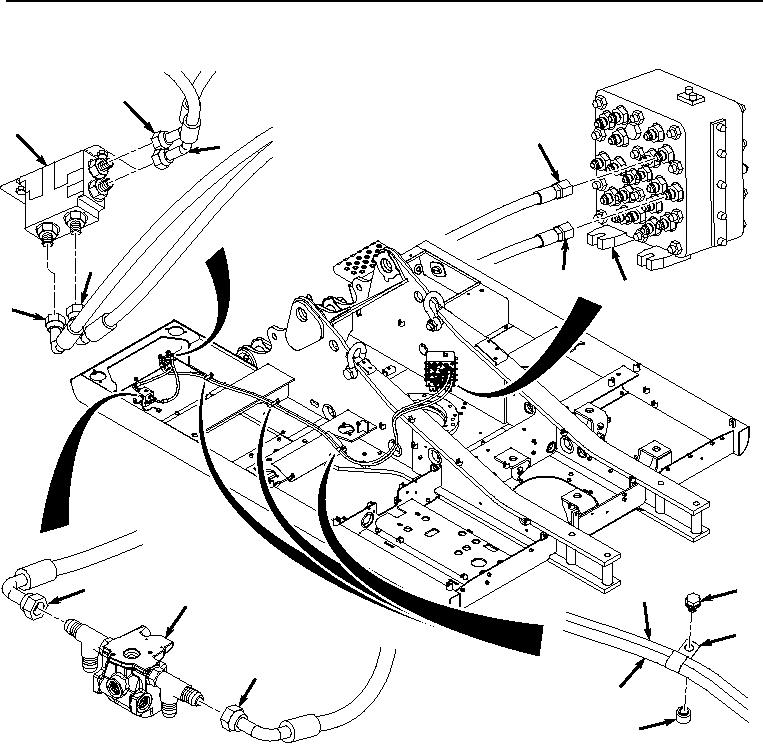

Figure 2.
Hose Installation.
2.
Install hose (Figure 2, Item 6) to pilot shut off valve (Figure 2, Item 7).
3.
Install hose (Figure 2, Item 5) to pilot shut off valve (Figure 2, Item 7).
4.
Install hose (Figure 2, Item 6) to hydraulic foot pedal (Figure 2, Item 4).
5.
Install hose (Figure 2, Item 5) to hydraulic foot pedal (Figure 2, Item 4).
6.
Install hose (Figure 2, Item 3) to hydraulic foot pedal (Figure 2, Item 4).
7.
Install hose (Figure 2, Item 1) to hydraulic foot pedal (Figure 2, Item 4).
8.
Install hose (Figure 2, Item 3) to pilot signal manifold (Figure 2, Item 2).
0631-5
