TM 5-3805-294-23-4
0632
LEFT SIDE AUXILIARY CIRCUIT ARM LINES INSTALLATION
WARNING
NOTE
Install hoses and fittings as noted prior to removal.
Remove caps and plugs as hoses and fittings are installed.
Install tie wraps as required.
1.

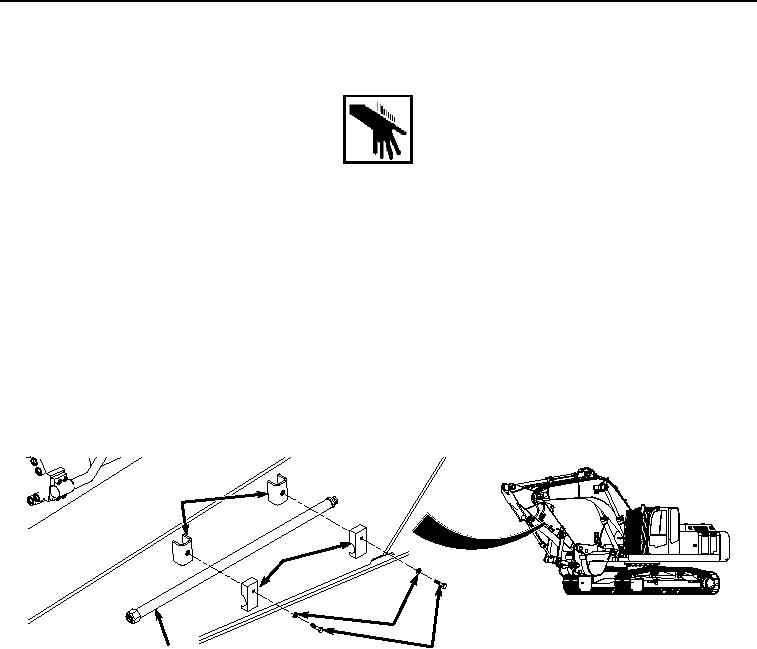

Install line (Figure 7, Item 26) to arm (Figure 7, Item 31) with two brackets (Figure 7, Item 30), washers (Figure
7, Item 29), and bolts (Figure 7, Item 28).
31
30
29
26
28
HYEX01126
Figure 7. Line Installation.
2.
Lightly lubricate O-ring (Figure 8, Item 27) with clean oil.
