ACTUATOR SERVICE - Continued
15
11, 12, 13
14
16
HYEX02904

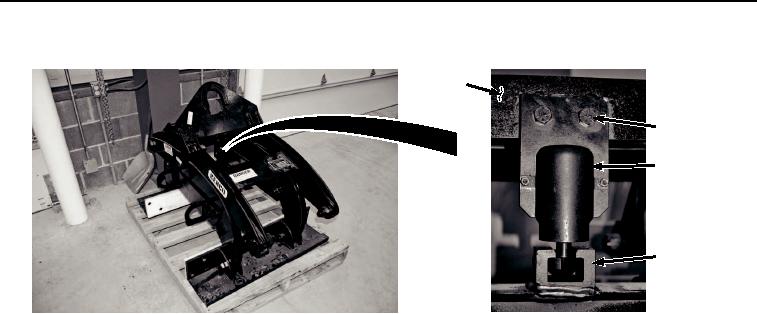

Figure 3.
Barrier Grapple Actuator Installation.
6.
Install actuator assembly (Figure 3, Item 14) to upper arm assembly (Figure 3, Item 15) with two screws (Figure
3, Item 11), lockwashers (Figure 3, Item 12), and nuts (Figure 3, Item 13).
END OF TASK
FOLLOW-ON MAINTENANCE
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
