RIGHT SIDE LOWER LINE REMOVAL - Continued
residual pressure to relieve before continuing to open lines and hoses. Failure to comply may
result in injury or death to personnel.
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Note location of hoses and position of fittings prior to removal to ensure proper
installation.
Note location of clamps prior to removal to ensure proper installation.
Position drain pan under hoses being disconnected.
1.
Remove hose (Figure 1, Item 1) from line (Figure 1, Item 2).
4
9
5
2
2
6
7
2
8
3
2
1
HYEX01768

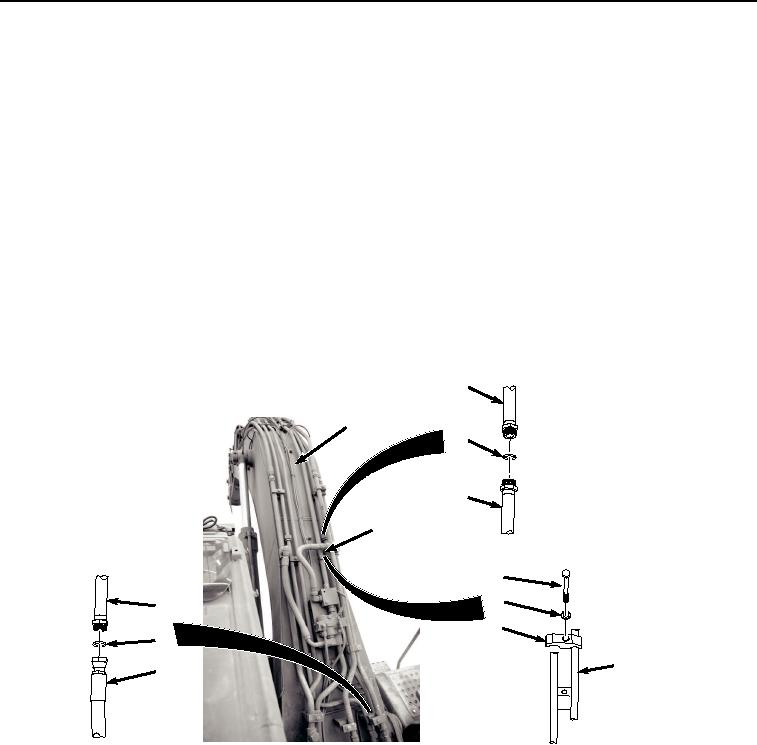

Figure 1. Right Side Lower Line Removal.
2.
Remove O-ring (Figure 1, Item 3) from line (Figure 1, Item 2). Discard O-ring.
3.
Remove line (Figure 1, Item 4) from line (Figure 1, Item 2).
4.
Remove O-ring (Figure 1, Item 5) from line (Figure 1, Item 2). Discard O-ring.
5.
Remove bolt (Figure 1, Item 6), washer (Figure 1, Item 7), and clamp (Figure 1, Item 8) from line (Figure 1,
Item 2).
6.
Remove line (Figure 1, Item 2) from boom (Figure 1, Item 9).
END OF TASK
