TM 5-3805-294-23-4
0657
REMOVAL - Continued
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Place drain pan under valves being removed.
Hoses and components of the main control valve are shown removed for clarity.
1.
Remove hose (Figure 1, Item 1) from fitting (Figure 1, Item 2).
1
2
3
4
HYEX03369

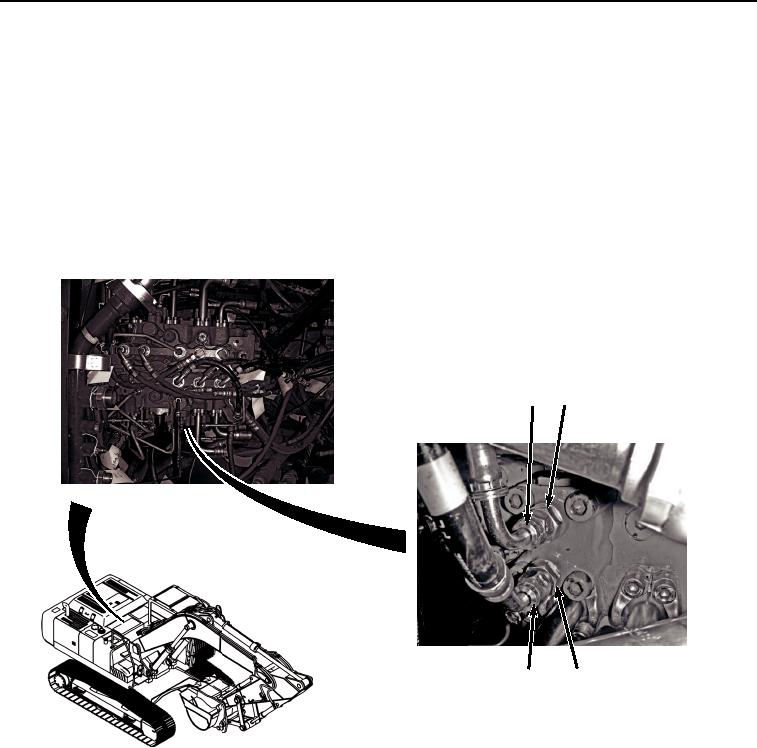

Figure 1.
Hose Removal.
2.
Remove hose (Figure 1, Item 3) from fitting (Figure 1, Item 4).
3.
Remove four screws (Figure 2, Item 5) and housing (Figure 2, Item 6) from control valve (Figure 2, Item 7).
