TM 5-3805-294-23-4
0656
INSTALLATION - Continued
9
8
6
2
7
8
5
HYEX02711

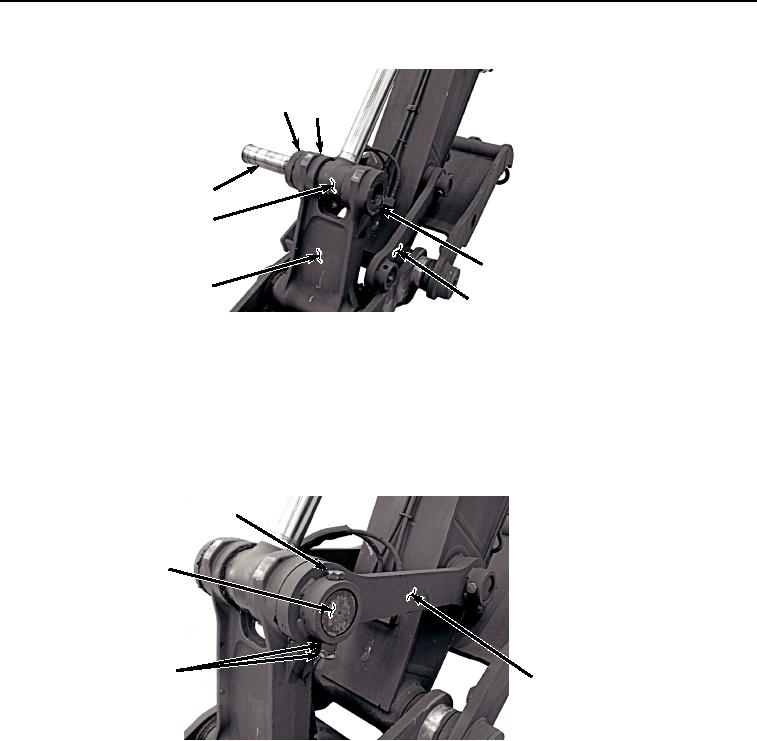

Figure 30.
Lower Pin Installation.
35.
Shut down engine (TM 5-3805-294-10).
36.
Install shim (Figure 30, Item 7) to between arm link (Figure 30, Item 5) and bucket link (Figure 30, Item 8).
37.
With the aid of an assistant, install pin (Figure 30, Item 6) to arm link (Figure 30, Item 5).
38.
Install two nuts (Figure 31, Item 3) and bolt (Figure 31, Item 4) to arm link (Figure 31, Item 5) and pin (Figure
31, Item 6).
4
6
3
5
HYEX02710
Figure 31. Lower Hardware Installation.
39.
Remove suitable lifting device (Figure 32, Item 1) from bucket cylinder (Figure 32, Item 2).
