Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  1185    1186    1187    1188    1189  1190  1191    1192    1193    1194    1195
.
TM 5-3805-294-23-4
0656
INSTALLATION - Continued
23.
Install hose (Figure 25, Item 22) to fitting (Figure 25, Item 23).
22
23
HYEX02716

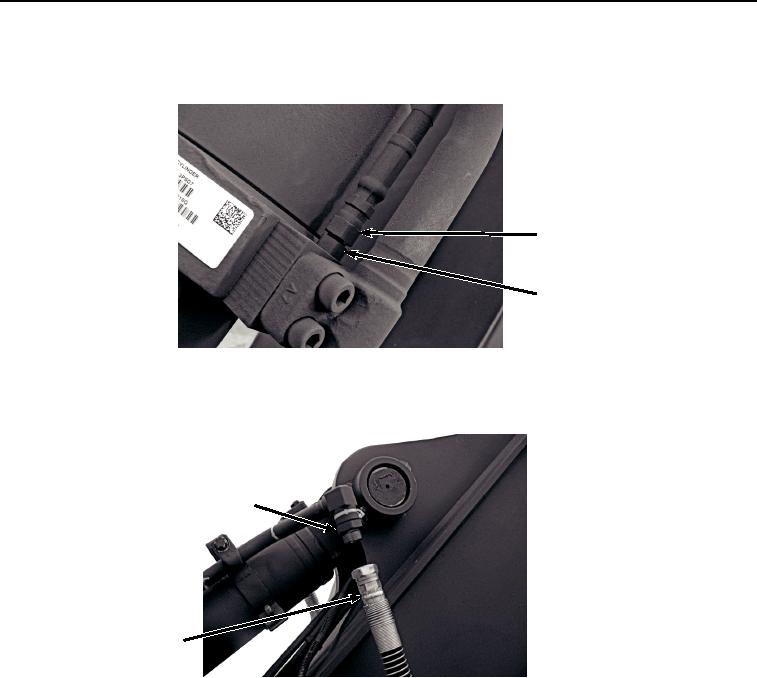

Figure 25. Lower Left Hose Installation.
24.
Lightly lubricate O-ring (Figure 26, Item 21) with clean oil.
20, 21
19
HYEX02715
Figure 26. Upper Left Hose Installation.
25.
Install O-ring (Figure 26, Item 21) to fitting (Figure 26, Item 20).
26.
Install hose (Figure 26, Item 19) to fitting (Figure 26, Item 20).
27.
Lightly lubricate O-ring (Figure 27, Item 16) and (Figure 27, Item 18) with clean oil.
0656-15
