TM 5-3805-294-23-4
0656
INSTALLATION - Continued
19.
Install two shims (Figure 22, Item 28) and bucket cylinder (Figure 22, Item 2) to machine (Figure 22, Item 26).
20.
Install pin (Figure 22, Item 27) to bucket cylinder (Figure 22, Item 2) and machine (Figure 22, Item 26).
21.
Install bolt (Figure 23, Item 25) and two nuts (Figure 23, Item 24) to machine (Figure 23, Item 26) and pin
(Figure 23, Item 27).
25
26
27
24
HYEX02718

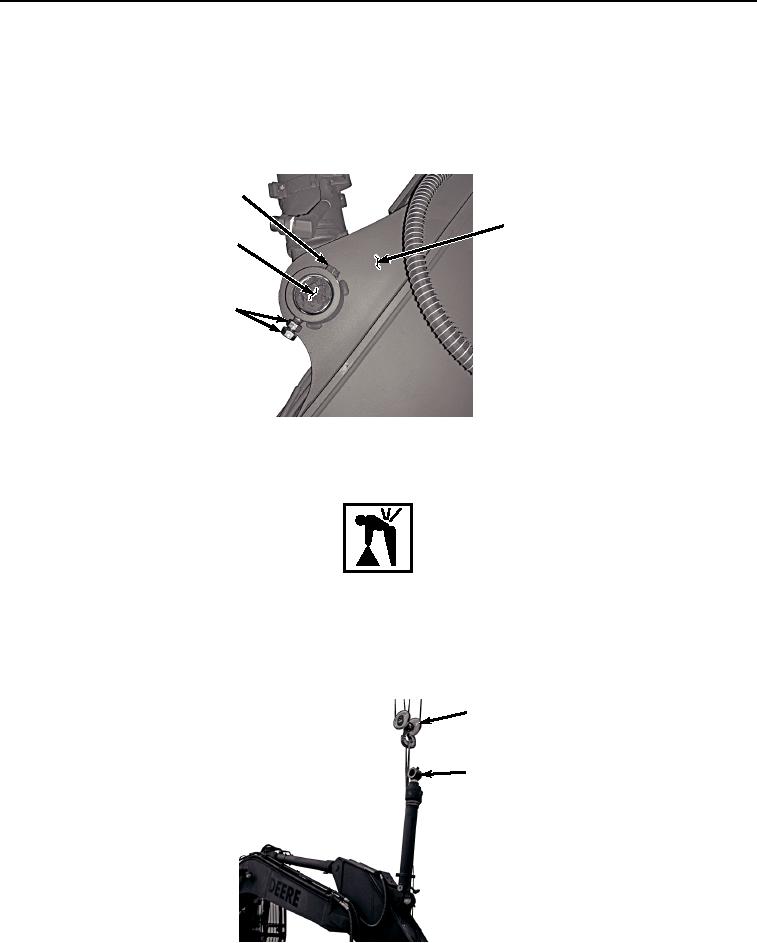

Figure 23. Upper Hardware Installation.
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
22.
With the aid of an assistant and suitable lifting device (Figure 24, Item 1), lower bucket cylinder (Figure 24,
Item 2) to a horizontal or flat position.
1
2
HYEX02717
Figure 24.
Lower Bucket Cylinder.
