TM 5-3805-294-23-4
0656
INSTALLATION - Continued
42, 43
44
45
46
2
42, 43
HYEX02722

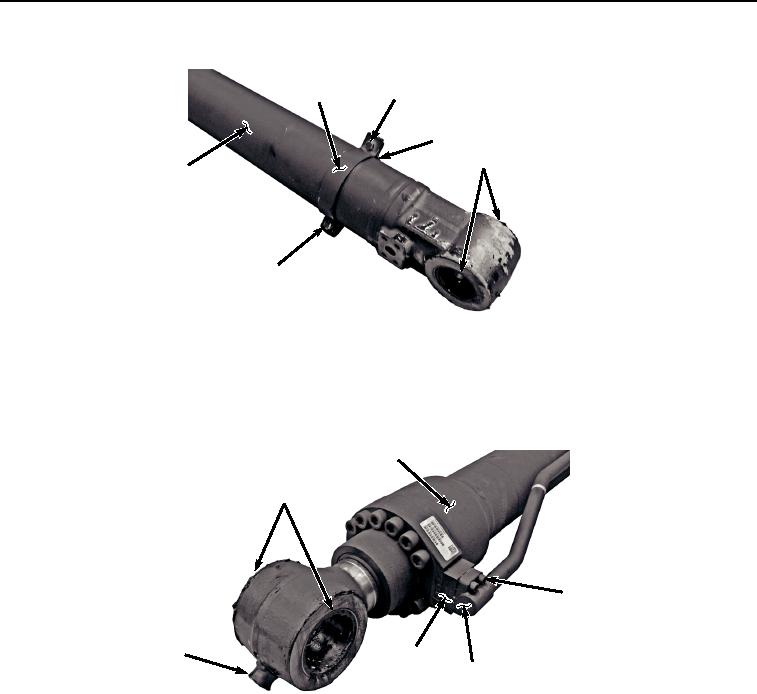

Figure 19. Clamp and Band Installation.
8.
Install clamp (Figure 19, Item 44) and band (Figure 19, Item 45) to bucket cylinder (Figure 19, Item 2) with two
lockwashers (Figure 19, Item 43) and bolts (Figure 19, Item 42).
9.
Install two seals (Figure 20, Item 41) to bucket cylinder (Figure 20, Item 2).
2
41
37
36
39, 40
31, 38
HYEX02721
Figure 20.
Lower Adapter Installation.
10.
Lightly lubricate O-rings (Figure 20, Item 38) and (Figure 20, Item 40) with clean oil.
11.
Install line (Figure 20, Item 31), O-ring (Figure 20, Item 38), adapter (Figure 20, Item 39), and O-ring (Figure
20, Item 40) to bucket cylinder (Figure 20, Item 2) with four screws (Figure 20, Item 37).
12.
Install grease fitting (Figure 20, Item 36) to bucket cylinder (Figure 20, Item 2).
13.
Install clamp (Figure 21, Item 34) to band (Figure 21, Item 35) and line (Figure 21, Item 31) with lockwasher
(Figure 21, Item 33) and bolt (Figure 21, Item 32).
