TM 5-3805-294-23-4
0656
REMOVAL - Continued
2
26
27
28
28
HYEX02719

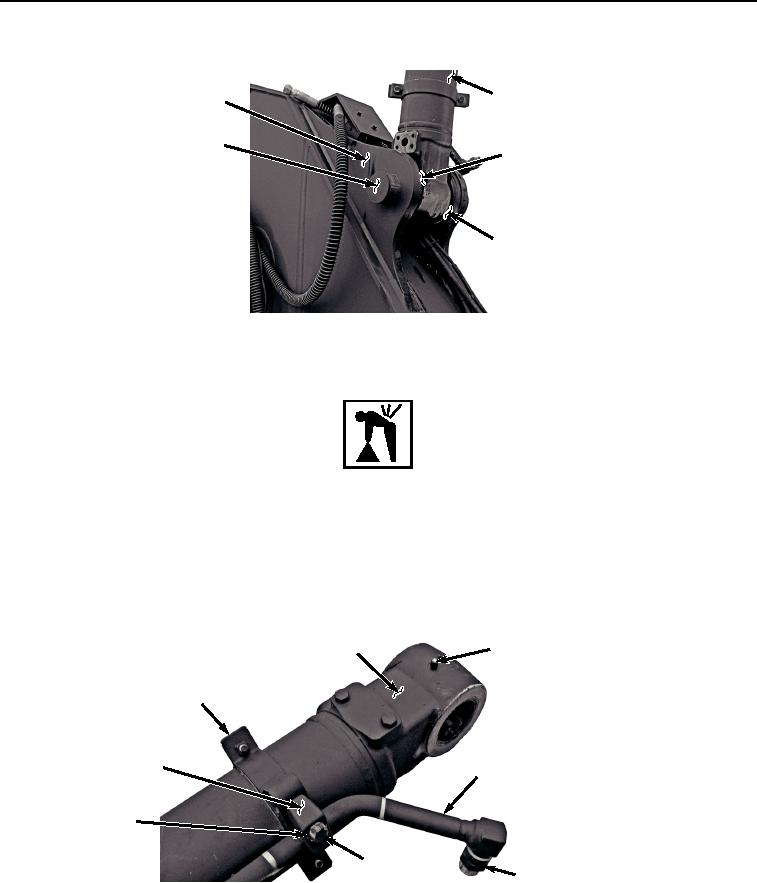

Figure 11. Bucket Cylinder Removal.
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
20.
Remove two shims (Figure 11, Item 28) and bucket cylinder (Figure 11, Item 2) from machine (Figure 11, Item
26).
21.
With the aid of an assistant and suitable lifting device, place bucket cylinder (Figure 12, Item 2) horizontally
on flat, stable work surface.
2
29
35
34
31
33
32
20, 30
HYEX02720
Figure 12. Place Boom Cylinder Horizontally.
22.
Remove grease fitting (Figure 12, Item 29) from bucket cylinder (Figure 12, Item 2).
23.
Remove fitting (Figure 12, Item 20) and O-ring (Figure 12, Item 30) from line (Figure 12, Item 31).
