TM 5-3805-294-23-4
0656
INSTALLATION - Continued
2
29
35
34
31
33
32
20, 30
HYEX02720

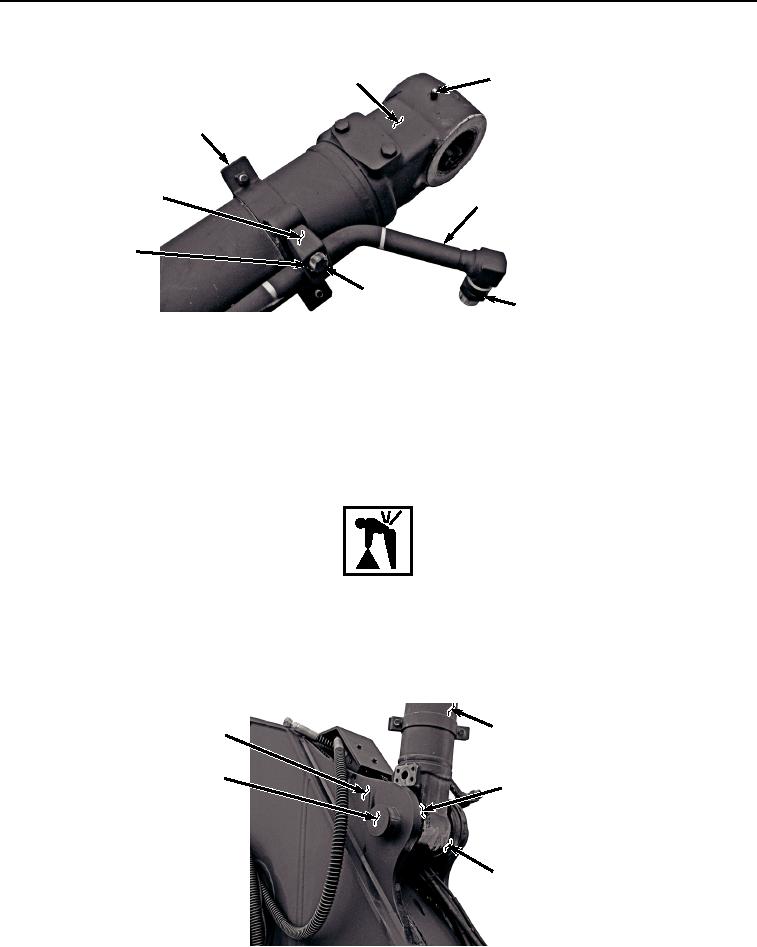

Figure 21. Clamp Installation
14.
Lightly lubricate O-ring (Figure 21, Item 30) with clean oil.
15.
Install O-ring (Figure 21, Item 30) to fitting (Figure 21, Item 20).
16.
Install fitting (Figure 21, Item 20) and O-ring (Figure 21, Item 30) to line (Figure 21, Item 31).
17.
Install grease fitting (Figure 21, Item 29) to bucket cylinder (Figure 21, Item 2).
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
18.
With the aid of an assistant and suitable lifting device, lift bucket cylinder (Figure 22, Item 2) vertically for
installation to machine (Figure 22, Item 26).
2
26
27
28
28
HYEX02719
Figure 22. Bucket Cylinder Installation.
