TM 5-3805-294-23-4
0656
INSTALLATION - Continued
2
10
1
2
8
HYEX02712

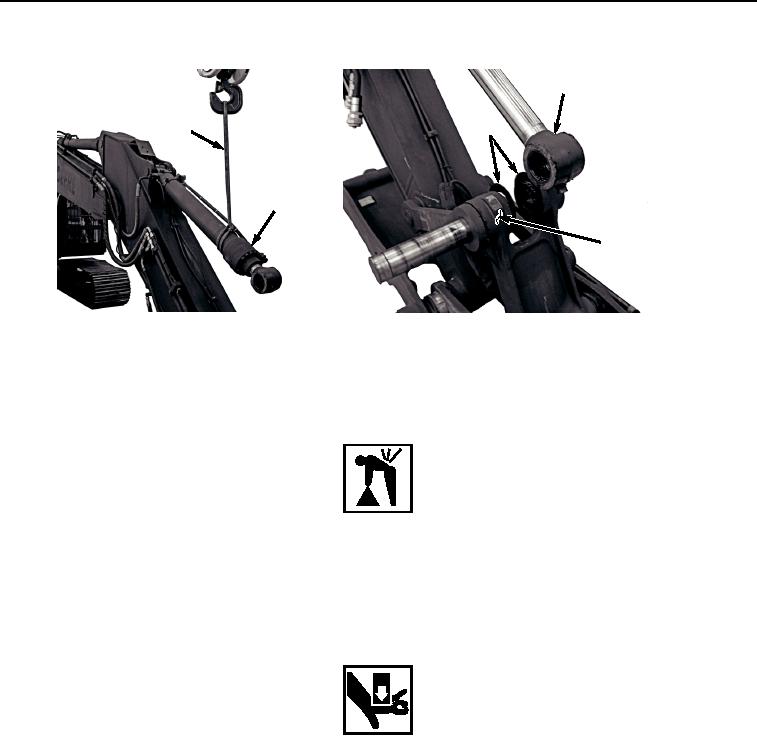

Figure 29.
Lower Bucket Cylinder.
32.
Install two shims (Figure 29, Item 10) between bucket cylinder (Figure 29, Item 2) and bucket link (Figure 29,
Item 8).
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
33.
With the aid of an assistant and suitable lifting device (Figure 29, Item 1), lower bucket cylinder (Figure 29,
Item 2) until aligned with bucket link (Figure 29, Item 8) pin bores.
WARNING
Do not remove pin from right side of bucket link and arm link. Bucket link and arm link can
come free and fall. Failure to comply may result in injury or death to personnel.
34.
Install pin (Figure 30, Item 6) to arm link (Figure 30, Item 9), left side of bucket link (Figure 30, Item 8), and
bucket cylinder (Figure 30, Item 2) leaving partially installed for installation of shim (Figure 30, Item 7) and arm
link (Figure 30, Item 5).
