TM 5-3805-294-23-4
0656
REMOVAL - Continued
1
2
HYEX02717

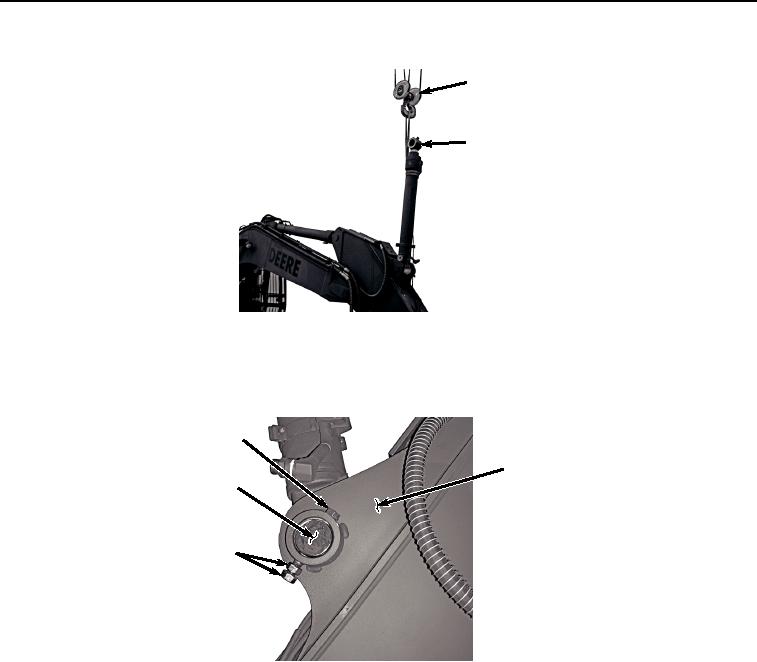

Figure 9.
Position Upright or Vertically.
18.
Remove two nuts (Figure 10, Item 24) and bolt (Figure 10, Item 25) from machine (Figure 10, Item 26) and pin
(Figure 10, Item 27).
25
26
27
24
HYEX02718
Figure 10.
Upper Hardware Removal.
19.
Remove pin (Figure 11, Item 27) from bucket cylinder (Figure 11, Item 2) and machine (Figure 11, Item 26).
