TM 5-3805-294-23-4
0656
REMOVAL - Continued
20, 21
19
HYEX02715

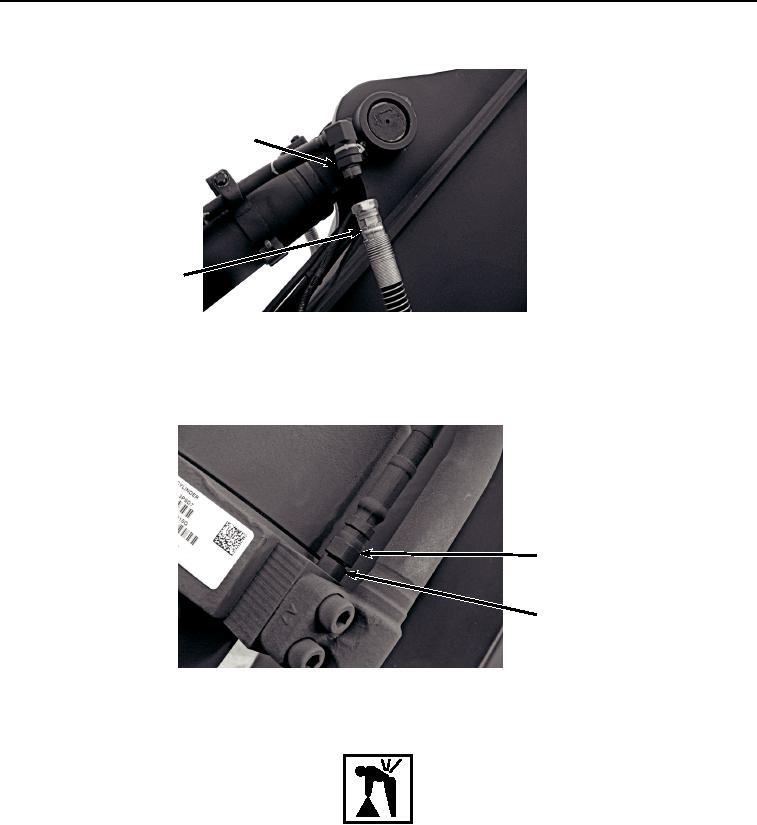

Figure 7. Upper Left Hose Removal.
15.
Remove O-ring (Figure 7, Item 21) from fitting (Figure 7, Item 20). Discard O-ring.
16.
Remove hose (Figure 8, Item 22) from fitting (Figure 8, Item 23).
22
23
HYEX02716
Figure 8. Lower Left Hose Removal.
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
17.
With the aid of an assistant and suitable lifting device (Figure 9, Item 1), position bucket cylinder (Figure 9,
Item 2) in the upright or vertical position.
