INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
1.
Install fuse F61 (Figure 3, Item 7) to fuse holder (Figure 3, Item 8).
5
7
6
8
HYEX01803

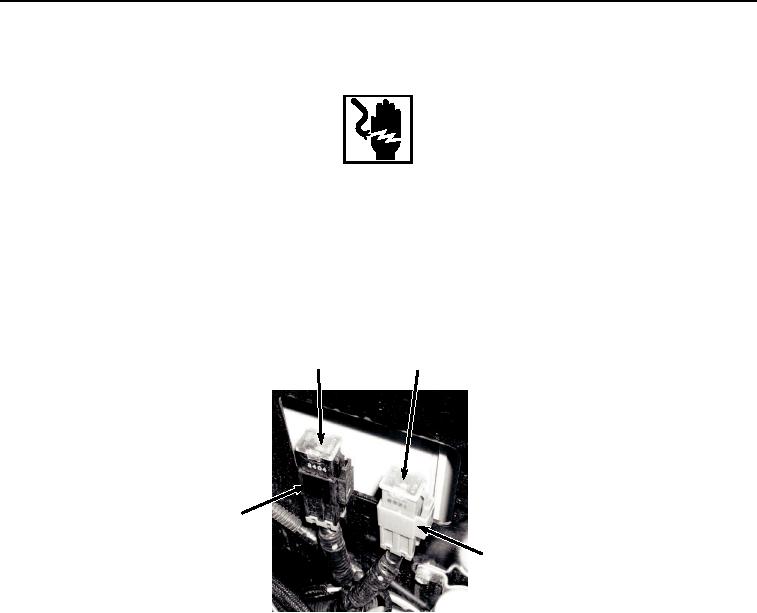

Figure 3. Fuses Installation.
2.
Install fuse F60 (Figure 3, Item 5) to fuse holder (Figure 3, Item 6).
3.
Install cover (Figure 4, Item 3) on panel (Figure 4, Item 4) with three screws (Figure 4, Item 1) and washers
(Figure 4, Item 2).
