TM 5-3805-294-23-4
0535
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.
Install freeze switch (Figure 4, Item 14) to evaporator (Figure 4, Item 13).
13
14
12
HYEX02013

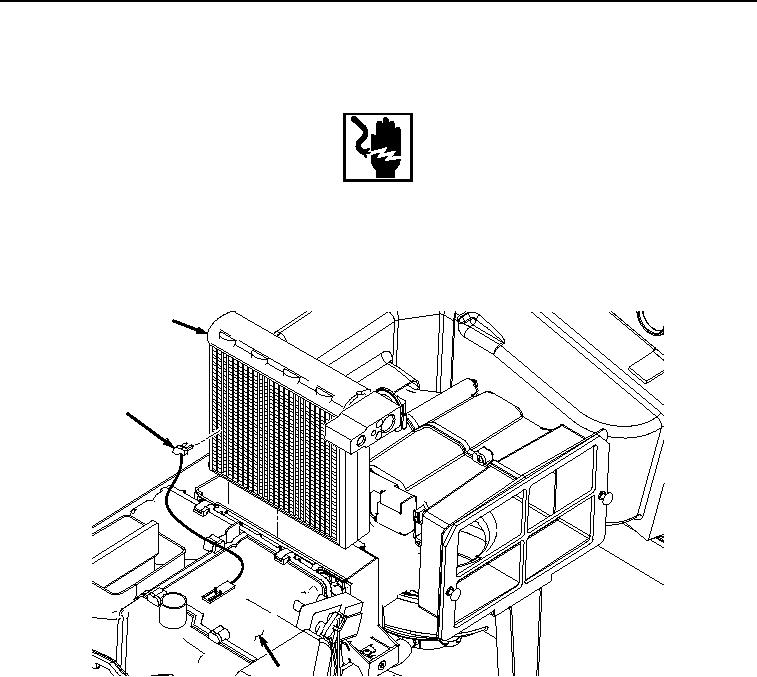

Figure 4. Evaporator Installation.
2.
Install evaporator (Figure 4, Item 13) and freeze switch (Figure 4, Item 14) to air conditioner/heater unit (Figure
4, Item 12).
3.
Install evaporator cover (Figure 5, Item 3) to air conditioner/heater unit (Figure 5, Item 12) with four screws
(Figure 5, Item 11).
