INSTALLATION - Continued
8
2
1
9
4
6
7
3
HYEX00300
5

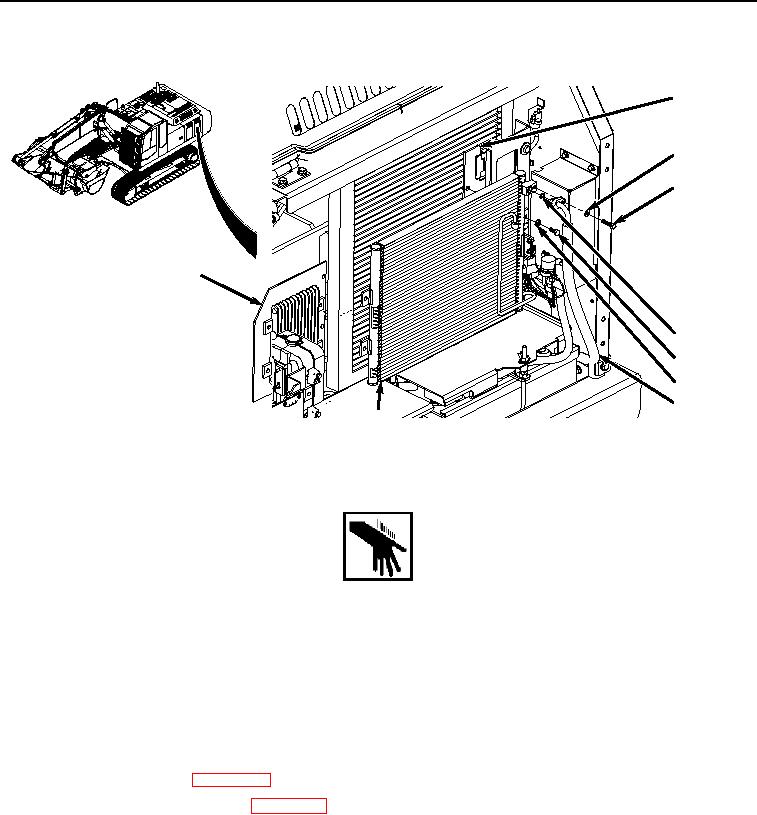

Figure 2. Condenser Installation.
WARNING
2.
Lightly lubricate O-ring (Figure 2, Item 4) with clean refrigerant compressor oil.
3.
Install hose (Figure 2, Item 3) and O-ring (Figure 2, Item 4) to condenser (Figure 2, Item 5) with bolt (Figure
2, Item 1) and washer (Figure 2, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Replace receiver-dryer. (WP 0538)
2.
Service air conditioning system. (WP 0540)
3.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
