TM 5-3805-294-23-4
0533
INSTALLATION - Continued
1
2
3
4
5
9
8
7
6
HYEX02343

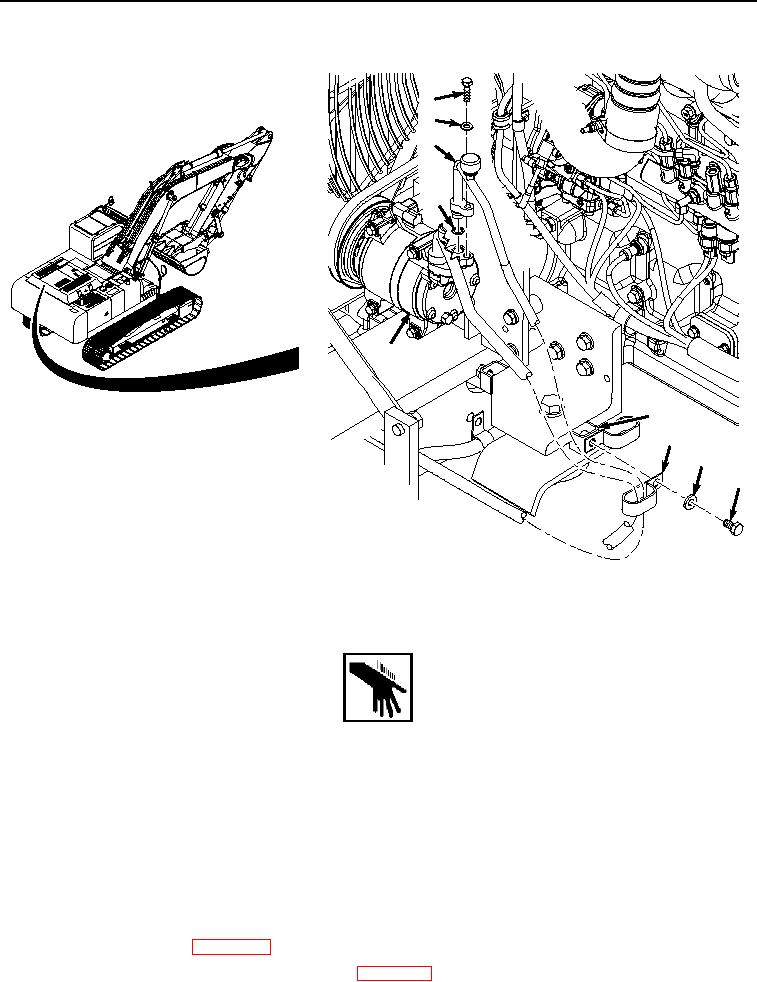

Figure 6.
Hose Installation to Compressor.
WARNING
6.
Lightly lubricate O-ring (Figure 6, Item 4) with clean refrigerant oil.
7.
Install O-ring (Figure 6, Item 4) to hose (Figure 6, Item 3).
8.
Install hose (Figure 6, Item 3) with O-ring (Figure 6, Item 4) to air conditioning compressor (Figure 6, Item 5)
with bolt (Figure 6, Item 1) and washer (Figure 6, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Replace receiver-dryer. (WP 0538)
2.
Install engine compartment lower access cover. (WP 0593)
